Halcon模板匹配错误问题

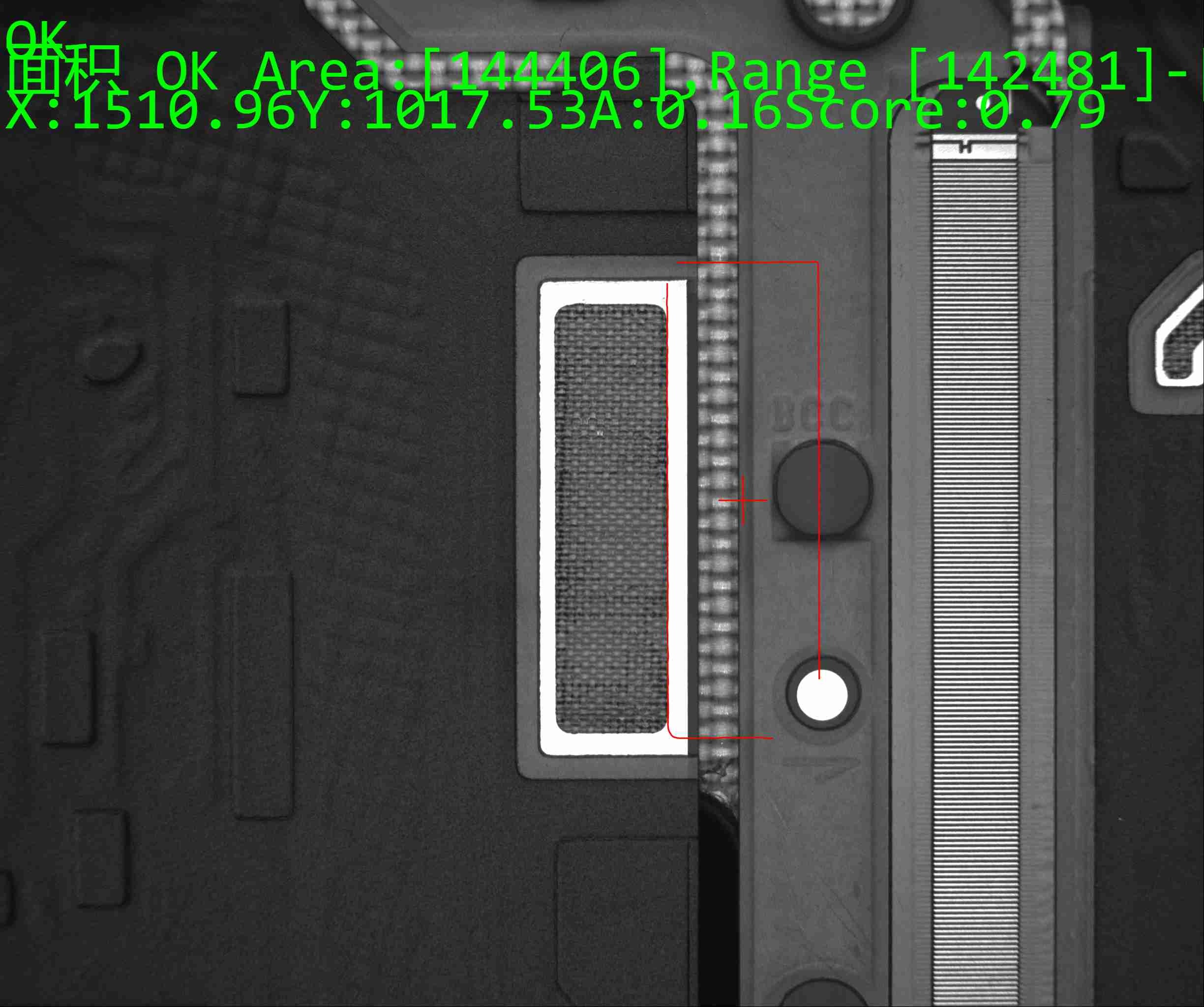

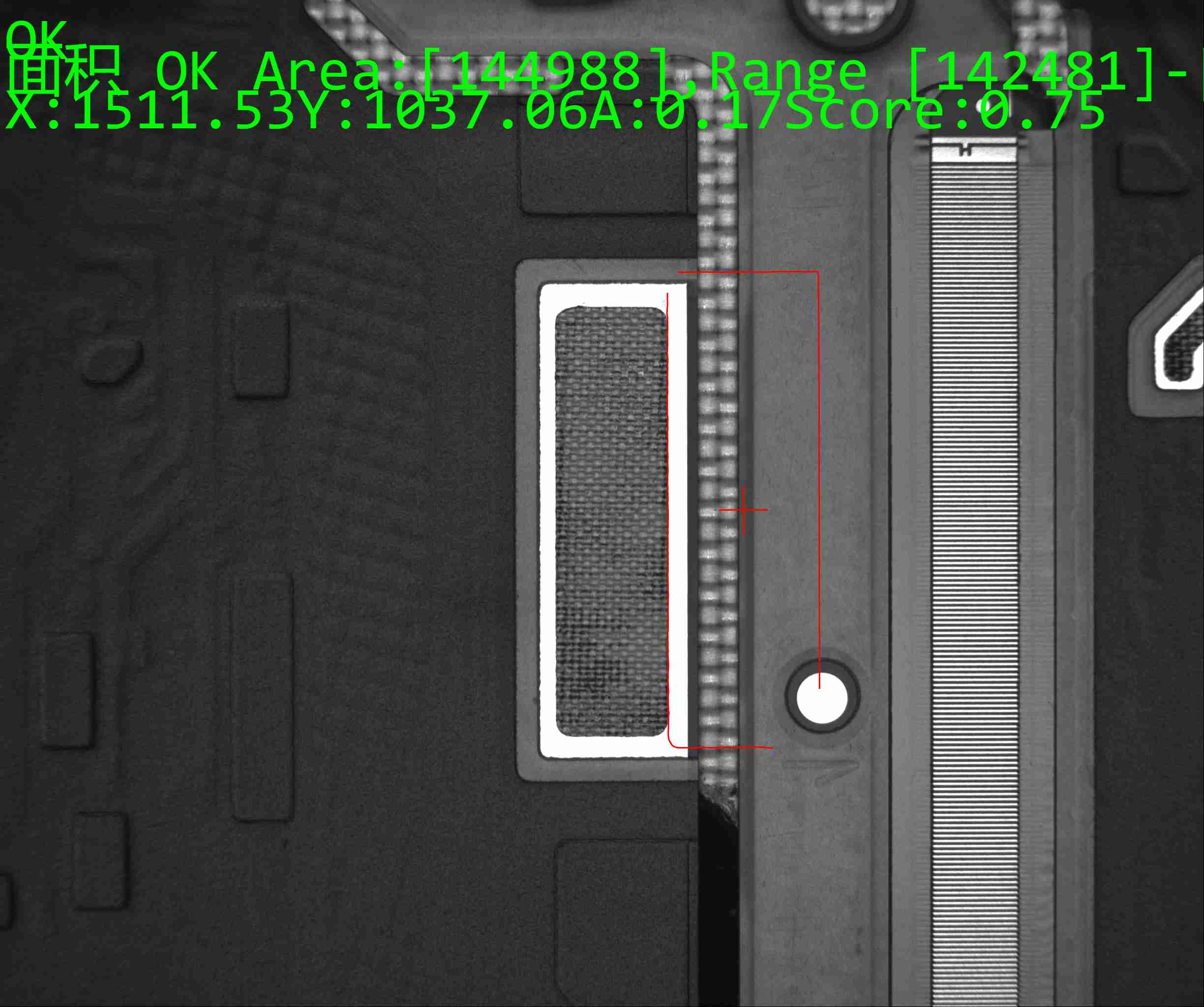

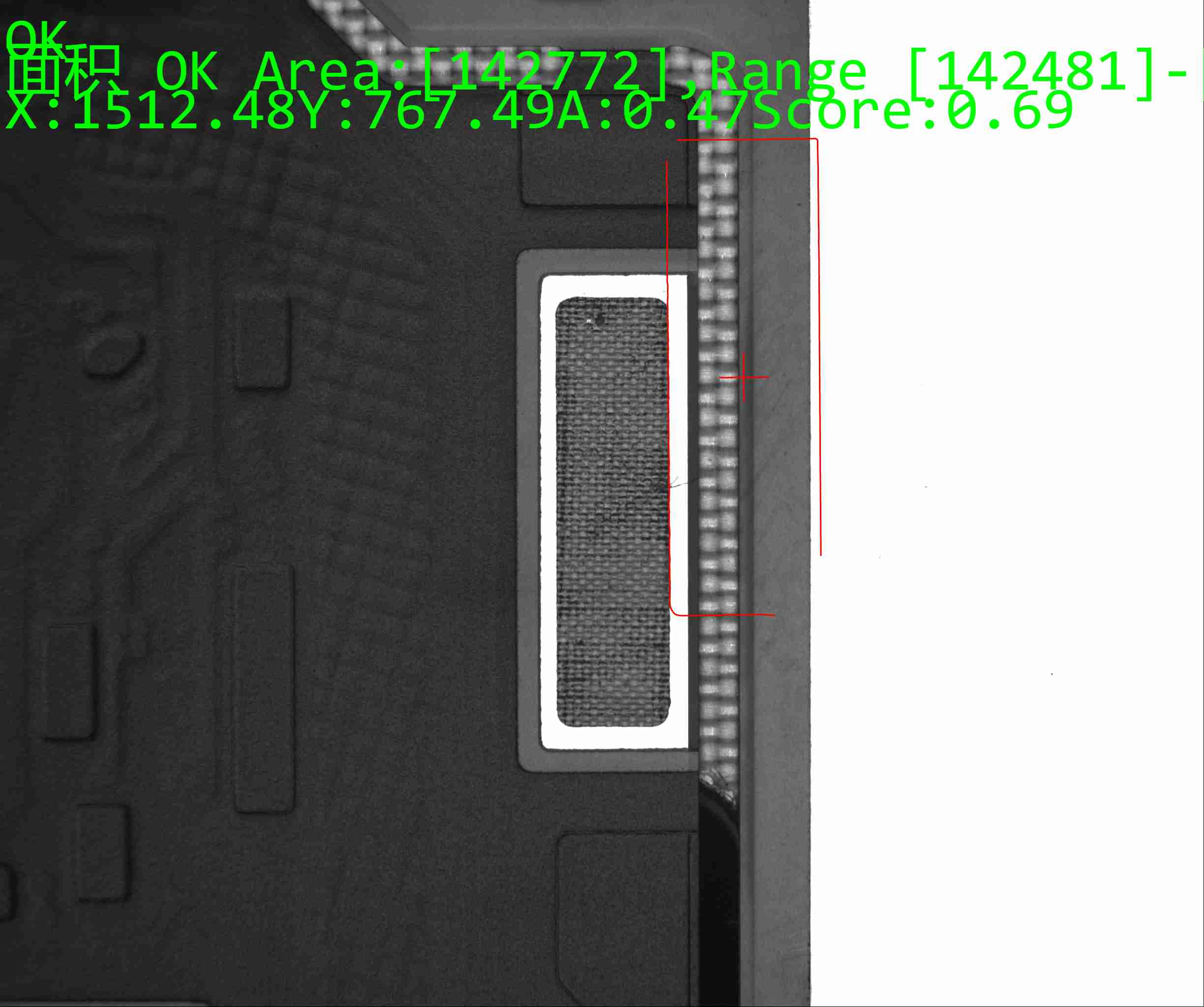

模板误识别，超出搜索框，识别分数过高。find_shape_model匹配分数算法原理是什么。

创建模板参数：

1. HShapeModel(shapeXld, "auto", new HTuple(startAngle).TupleRad().D, new HTuple(steptAngle).TupleRad().D, "auto", "none", "use_polarity", 10);

复制代码

查找模板参数：

1. FindShapeModel(tempIamge, (new HTuple(startAngle)).TupleRad(), (new HTuple(endAngle - startAngle)).TupleRad(), minScore, 1, 0.5, new HTuple("least_squares"), numLevel, 0.9, out findRow, out findColumn, out findAngle, out findScore);

复制代码

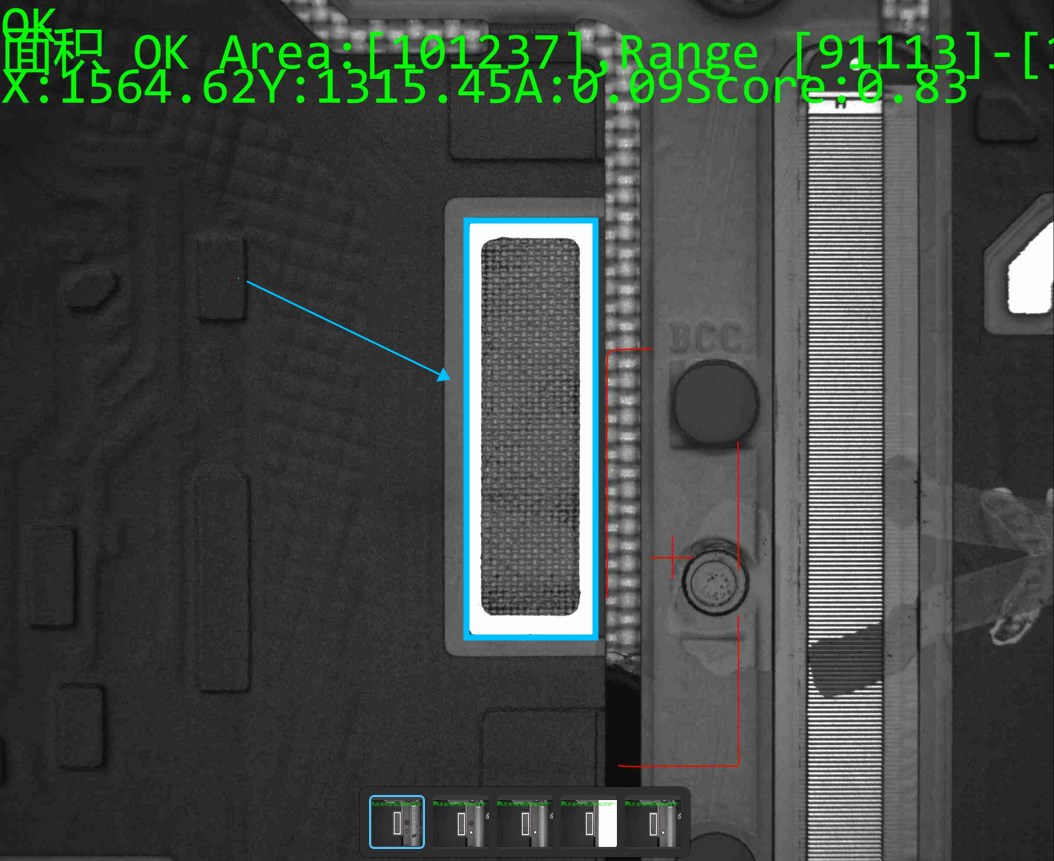

蓝色方框是需要识别的模板

你这是要识别啥啊

补充:需要识别的轮廓

蓝色框体是需要识别的轮廓

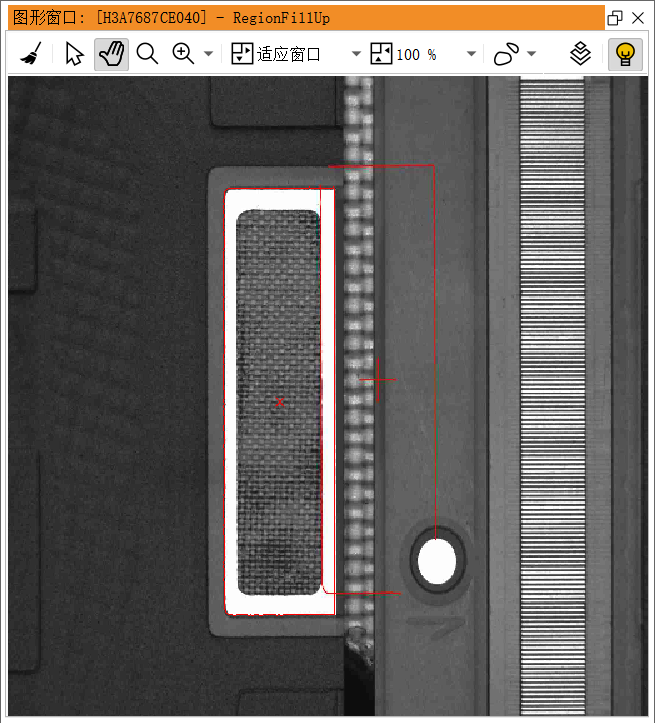

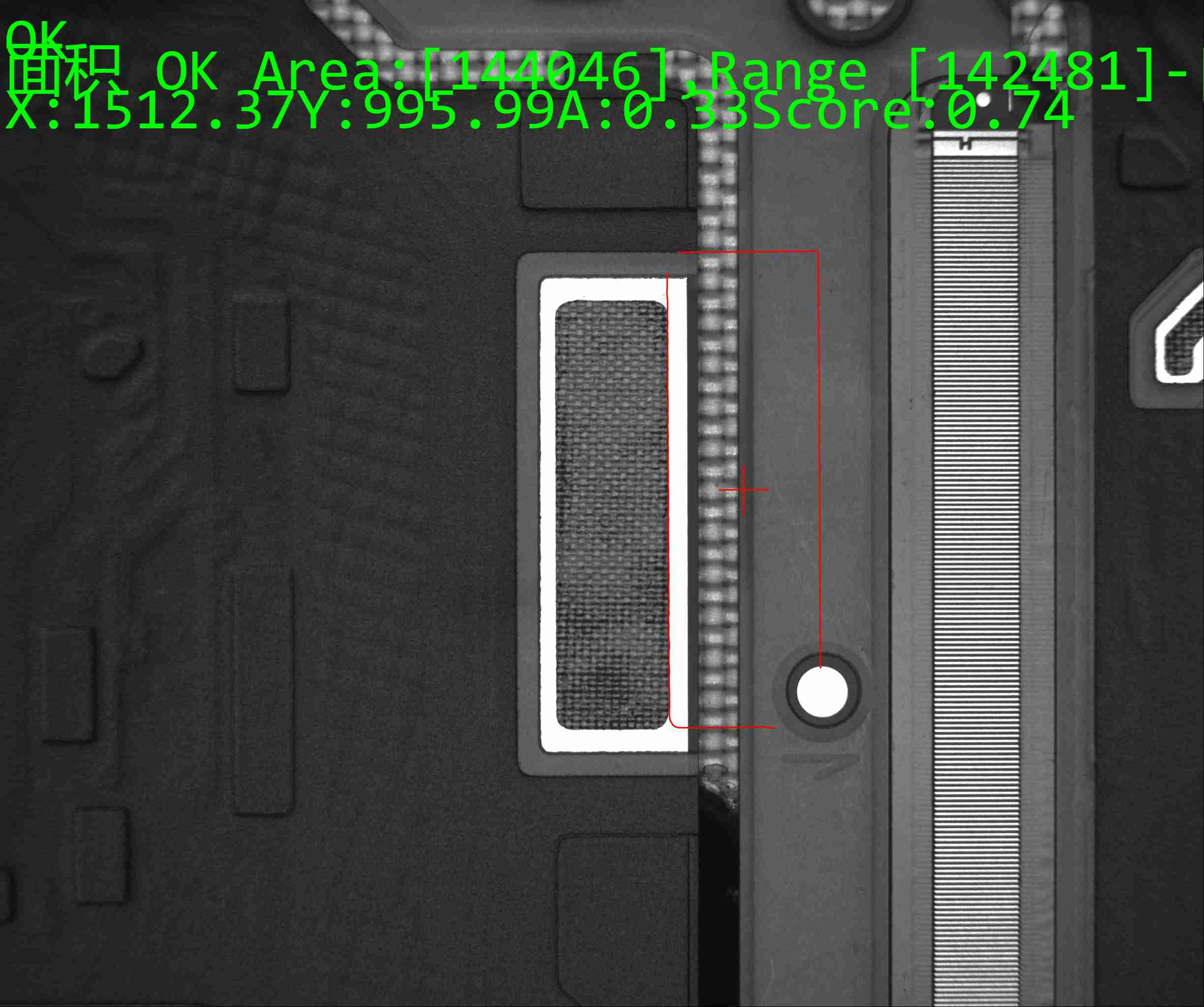

1. read_image (Image, 'D:/halcon/104344shhmf5hz3hz3flq9.jpg')

2. dev_open_window (0, 0, 512, 512, 'black', WindowHandle)

3. rgb1_to_gray (Image, GrayImage)

4. threshold (GrayImage, Regions, 227, 255)

5. dilation_circle (Regions, RegionDilation, 3.5)

6. connection (RegionDilation, ConnectedRegions)

7. select_shape (ConnectedRegions, SelectedRegions, 'area', 'and', 90000, 100000)

8. fill_up (SelectedRegions, RegionFillUp)

9.

10. area_center (RegionFillUp, Area, Row, Column)

11. gen_cross_contour_xld (Cross, Row, Column, 30, 0.785398)

12. dev_clear_window ()

13. dev_set_colored (3)

14. dev_set_draw ('margin')

15. dev_display (Image)

16. dev_display (Cross)

17. dev_display (RegionFillUp)

复制代码

zjjdsg 发表于 2023-8-31 11:15
read_image (Image, 'D:/halcon/104344shhmf5hz3hz3flq9.jpg')
dev_open_window (0, 0, 512, 512, 'black' ...

面积筛选方式，有局限性

这么简单的一个模板匹配会有什么问题呢？

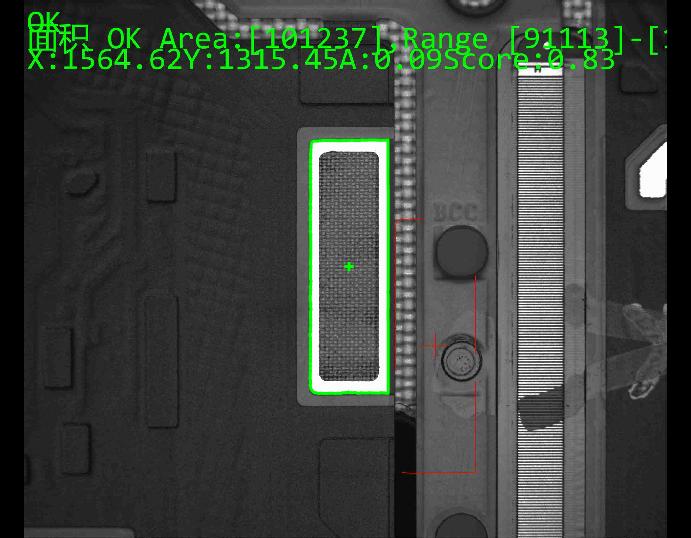

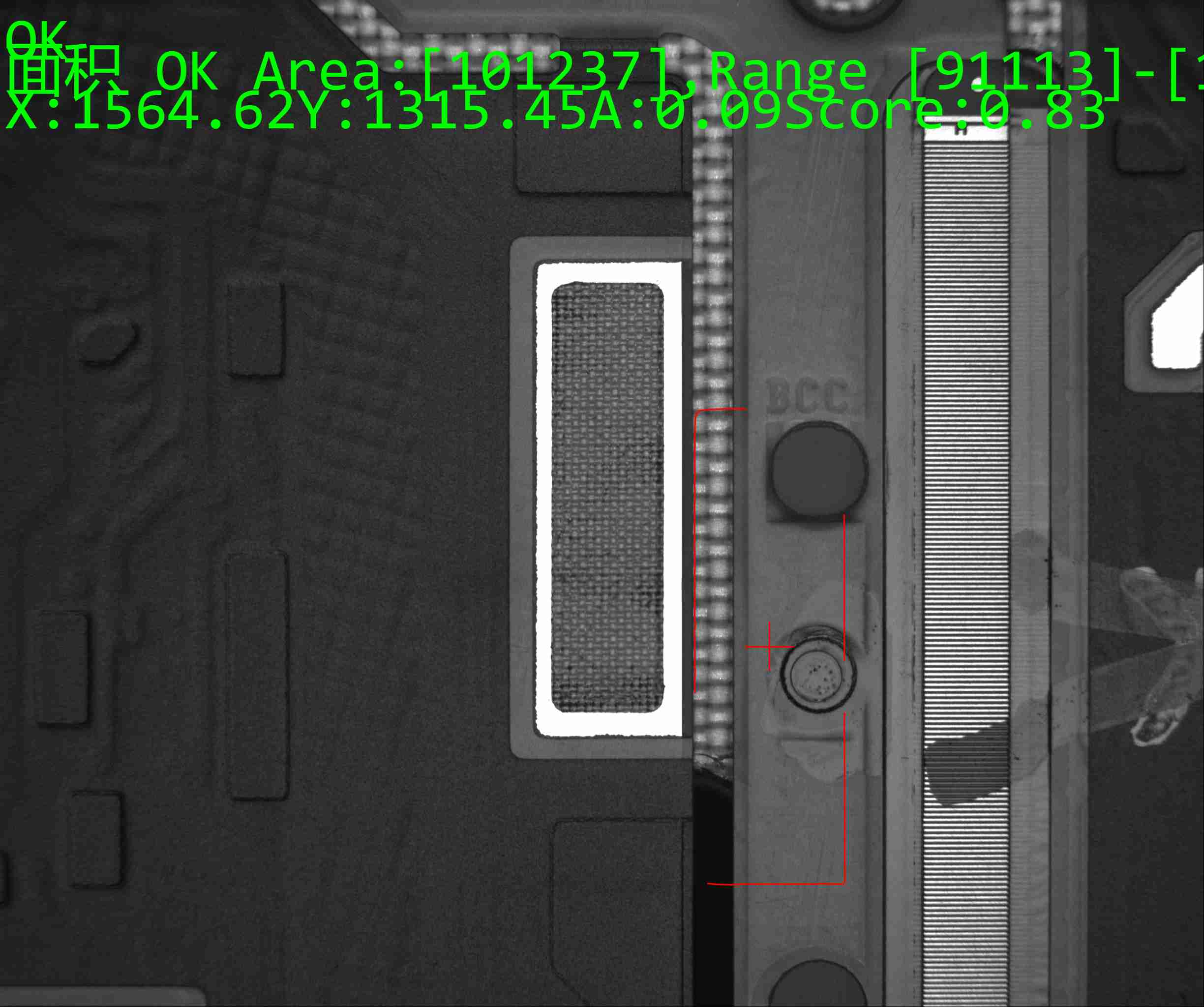

1. read_image (Image, 'C:/Users/Administrator/Desktop/104344jp7p7nnpo0ppnk8o.jpg')

2. threshold (Image, Region, 200, 255)

3. connection (Region, ConnectedRegions)

4. select_shape_std (ConnectedRegions, SelectedRegions, 'max_area', 70)

5. fill_up (SelectedRegions, RegionFillUp)

6. dilation_rectangle1 (RegionFillUp, RegionDilation, 7, 7)

7. erosion_rectangle1 (RegionFillUp, RegionErosion, 7, 7)

8. difference (RegionDilation, RegionErosion, RegionDifference)

9. reduce_domain (Image, RegionDifference, ImageReduced)

10. edges_sub_pix (ImageReduced, Edges, 'canny', 1, 20, 40)

11. create_shape_model_xld (Edges, 'auto', -0.39, 0.79, 'auto', 'auto', 'ignore_local_polarity', 5, ModelID)

12. find_scaled_shape_model (Image, ModelID, -0.39, 0.78, 0.9, 1.1, 0.5, 1, 0.5, 'least_squares', 0, 0.9, Row, Column, Angle, Scale, Score)

13. dev_display (Image)

14. dev_display_shape_matching_results (ModelID, 'green', Row, Column, Angle, 1, 1, 0)

15. gen_cross_contour_xld (Cross, Row, Column, 36, Angle)

复制代码
