屏幕划伤帮忙看下有什么思路

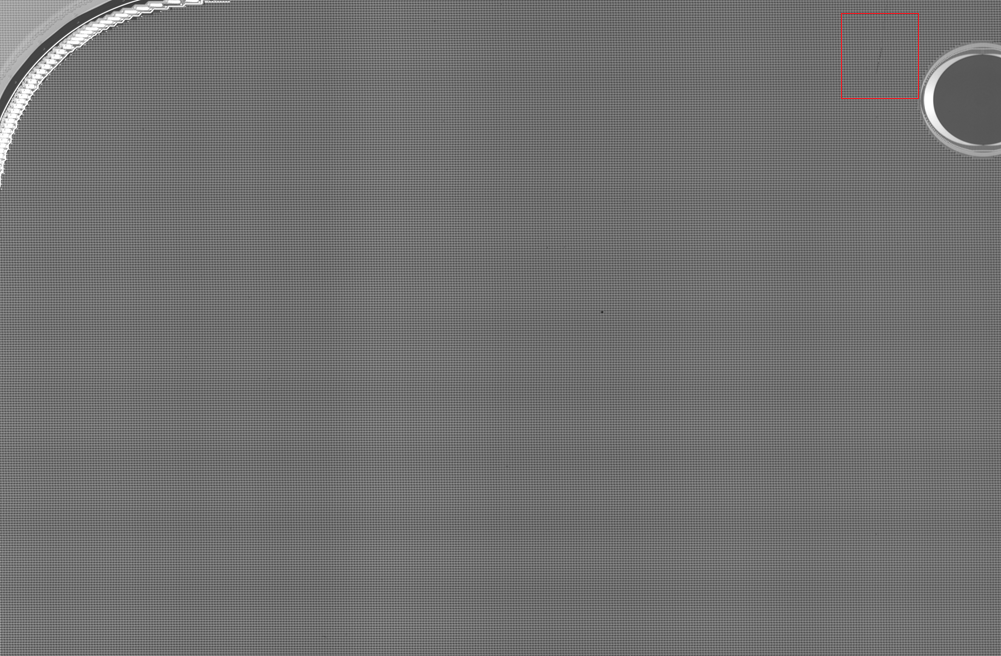

帮忙看下这种缺陷有什么检测思路，感谢
原图在这里：https://pan.baidu.com/s/1LcPHchIyPL3jkaksWDisXg?pwd=1234

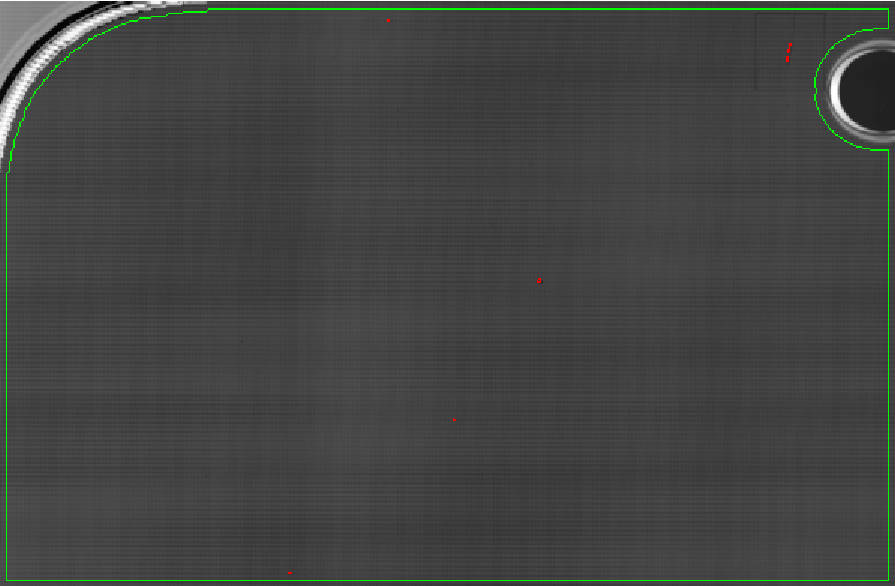

很简答的需求

1. read_image (Image0, 'D:/个人/5/裂纹20260123.png')

2. rgb1_to_gray (Image0, Image0)

3. mean_image (Image0, Image, 3, 3)

4. scale_image_max (Image, Image)

5.

6. *提取有效区域

7. threshold (Image, RegionB, 0, 87)

8. connection (RegionB, RegionB)

9. select_shape_std (RegionB, RegionB, 'max_area', 70)

10. erosion_circle (RegionB, RegionB, 10)

11.

12. *提取缺陷区域

13. local_threshold (Image, Region, 'adapted_std_deviation', 'dark', ['mask_size','scale','range'], [15,0.1,128])

14. connection (Region, Region)

15. select_shape (Region, RegionS, 'area', 'and', 5, 9999999)

16. *//把你画的红框去掉

17. union1 (RegionS, RegionS)

18. closing_circle (RegionS, RegionS, 3.5)

19. connection (RegionS, RegionS)

20. select_shape (RegionS, RegionS, 'width', 'and', 0, 40)

21.

22. intersection (RegionB, RegionS, RegionS)

23.

24. dev_clear_window ()

25. dev_display (Image)

26. dev_set_draw ('margin')

27. dev_set_color ('green')

28. dev_display (RegionB)

29. dev_set_color ('red')

30. dev_display (RegionS)

复制代码

UKimiF 发表于 2026-1-23 13:04
很简答的需求

用原图试下呗，贴的图质量损失太多了
