螺丝十字槽检测

向大神求教，如何检出中间这颗螺丝的十字槽的缺陷

1. dev_close_window()

2. dev_open_window(0, 0, 512, 512, 'black', WindowHandle)

3. read_image (Image913523B340af66e82c64f, 'image/9_13523_b340af66e82c64f.png')

4. rgb1_to_gray(Image913523B340af66e82c64f, GrayImage)

5. dev_display(GrayImage)

6. gen_rectangle2(Rectangle, 714.6, 883, 0, 69.36, 9.86)

7. gen_circle(Circle, 715.1, 881.93, 31.75)

8.

9. difference(Rectangle, Circle, RegionDifference)

10. gen_contour_region_xld (RegionDifference, Contours, 'border')

11. ***建立shape model

12. create_shape_model_xld(Contours, 'auto', -1.57, 3.14, 'auto', 'auto', 'ignore_local_polarity', 15, ModelID)

13. get_shape_model_contours(ModelContours, ModelID, 1)

14. find_shape_model(GrayImage, ModelID, -1.57, 3.14, 0.5, 3, 0.5, ['least_squares','max_deformation 2'], 0, 0.1, Row2, Column2, Angle, Score)

15. dev_update_off()

16. for i:=0 to |Row2|-1 by 1

17.     vector_angle_to_rigid (0, 0, 0, Row2, Column2, Angle, HomMat2D)

18.     affine_trans_contour_xld(ModelContours, ContoursAffineTrans, HomMat2D)

19.     gen_region_contour_xld (ContoursAffineTrans, Region, 'filled')

20.     union1(Region, RegionUnion)

21.     shape_trans(RegionUnion, RegionTrans, 'rectangle2')

22.     difference(RegionTrans, RegionUnion, RegionDifference1)

23.     opening_circle(RegionDifference1, RegionOpening, 2.5)

24.     dilation_rectangle1(RegionOpening, RegionDilation, 11, 25)

25.     smallest_rectangle2(RegionUnion, Row3, Column3, Phi1, Length11, Length21)

26.     gen_rectangle2(Rectangle1, Row3, Column3, Phi1+1.57, Length11-25, Length21)

27.     difference(Rectangle1, RegionDilation, RegionDifference2)

28.     erosion_circle(RegionDifference2, RegionErosion, 2.5)

29.     connection(RegionErosion, ConnectedRegions)

30.     count_obj(ConnectedRegions, Number)

31.     intensity(ConnectedRegions, GrayImage, Mean, Deviation)

32.     **用MLP 分類器會比較穩定

33.     ***把Mean,Deviation 或是其他region等變數作為MLP輸入, 訓練MLP 即可分類結果0,1 (Pass,Fail)

34.     **一個螺絲有兩的分類結果 任一個Fail 就是Fail

35.     if((Mean[0]>160 and Deviation[0]>45) or(Mean[1]>160 and Deviation[1]>45))

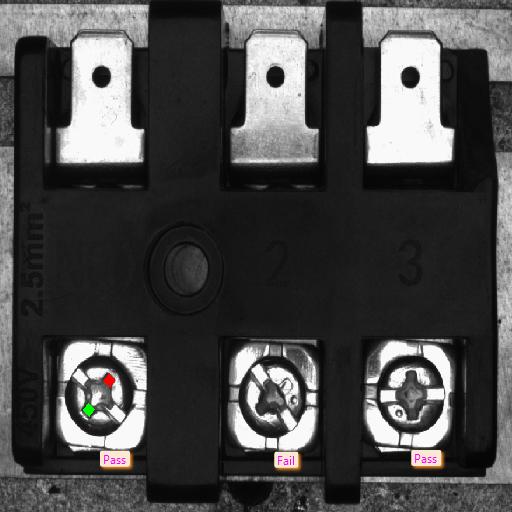

36.         dev_disp_text('Fail', 'image', Row2+100,Column2, 'magenta', [], [])

37.     else

38.         dev_disp_text('Pass', 'image', Row2+100,Column2, 'magenta', [], [])

39.     endif

40. endfor
