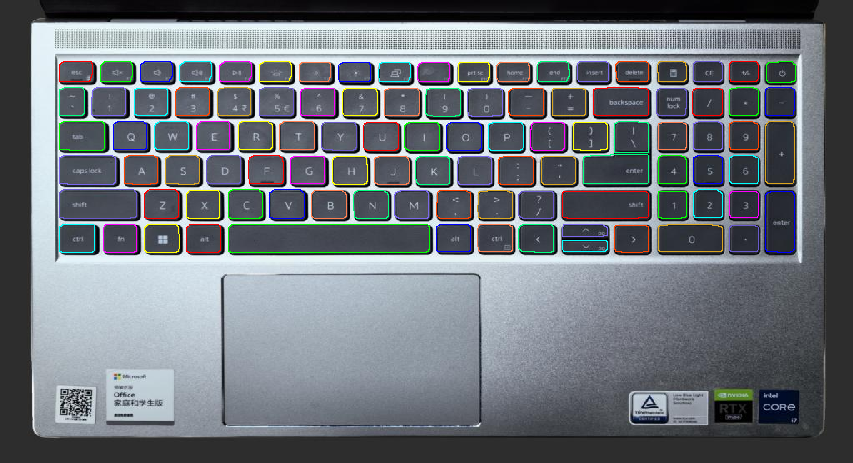

键盘分割测试欢迎指导

作为一个初学者做的，不知道对不对：

1. read_image (Image1, 'C:/Users/Awei/Desktop/1.jpg')

2.

3. gen_rectangle1 (ROI_0, 74.216, 62.5263, 384.833, 960.474)

4. reduce_domain(Image1, ROI_0, ImageReduced)

5. decompose3(ImageReduced, Image11, Image2, Image3)

6. mean_image(Image11, ImageMean, 99, 99)

7. dyn_threshold(Image11, ImageMean, RegionDynThresh, 7, 'dark')

8. fill_up(RegionDynThresh, RegionFillUp)

9. opening_rectangle1(RegionFillUp, RegionOpening, 10, 10)

10. connection(RegionOpening, ConnectedRegions)

11. select_shape(ConnectedRegions, SelectedRegions, 'area', 'and', 1000, 15000)

12. union1(SelectedRegions, RegionUnion)

13. reduce_domain(Image11, RegionUnion, ImageReduced1)

14. threshold (ImageReduced1, Regions, 30, 106)

15. connection(Regions, ConnectedRegions1)

16. opening_rectangle1(ConnectedRegions1, RegionOpening1, 5, 3)

17. fill_up(RegionOpening1, RegionFillUp1)

18. select_shape(RegionFillUp1, SelectedRegions1, 'area', 'and', 600, 13000)

19. shape_trans(SelectedRegions1, RegionTrans, 'convex')

20. boundary(RegionTrans, RegionBorder, 'inner')

21.

22. dev_display(Image1)

23. dev_display(RegionBorder)

24.

25. dump_window_image(Image, 200000)

26. write_image(Image, 'png', 0,'C:/Users/Awei/Desktop/12.png')

复制代码
