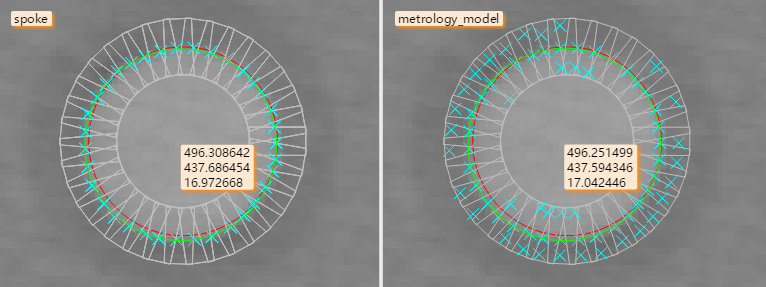

spoke卡圆工具 和 metrology_model是一个东西吧

1. import './spoke.hdvp'

2. import './pts_to_best_circle.hdvp'

3. import './draw_spoke.hdvp'

4. read_image (Image, 'pads')

5. get_image_size (Image, Width, Height)

6. dev_close_window ()

7. dev_open_window (0, 0, 384, 288, 'black', WindowHandle)

8. dev_set_window_extents (0, 0, 384, 288)

9. dev_set_part (471, 406, 521, 473)

10. dev_display (Image)

11.

12. * draw_spoke (Image, Regions, 200000, 30, 60, 15, ROIRows, ROICols, Direct)

13.

14. gen_circle_contour_xld (ROI_0, 495.7, 438.1, 16.7141, 0, 6.28318, 'positive', 1)

15. smallest_circle_xld (ROI_0, Row1, Column1, Radius1)

16. get_contour_xld (ROI_0, Row, Col)

17.

18. Length1:=10.0

19. Length2:=5.0

20. Sigme:=0.5

21. Threshold:=1.0

22. spoke (Image, Regions1, 100, Length1, Length2, Sigme, Threshold, 'all', 'max', Row, Col, 'outer', ResultRow1, ResultColumn1, ArcType)

23. gen_cross_contour_xld (Cross, ResultRow1, ResultColumn1, 3, 0.785398)

24. pts_to_best_circle (Circle, ResultRow1, ResultColumn1,|ResultRow1|, ArcType, RowCenter, ColCenter, Radius, StartPhi, EndPhi, PointOrder, ArcAngle)

25. remove_obj (Regions1, Regions1, 1)

26. remove_obj (Regions1, Regions1, 2)

27. dev_display (Image)

28. dev_set_line_width (1)

29. dev_set_color ('red')

30. dev_display (ROI_0)

31. Color := ['gray','cyan','green']

32. dev_set_color (Color[0])

33. dev_display (Regions1)

34. dev_set_color (Color[1])

35. dev_display (Cross)

36. dev_set_color (Color[2])

37. dev_display (Circle)

38. dev_disp_text ([RowCenter, ColCenter, Radius], 'image', RowCenter, ColCenter, 'black', [], [])

39. dev_disp_text ('spoke', 'window', 'top', 'left', 'black', [], [])

40. stop ()

41.

42. dev_open_window (0, 0, 384, 288, 'black', WindowHandle1)

43. dev_set_window_extents (0, 384, 384, 288)

44. dev_set_part (471, 406, 521, 473)

45. dev_display (Image)

46. create_metrology_model (MetrologyHandle)

47. set_metrology_model_image_size (MetrologyHandle, Width, Height)

48. add_metrology_object_circle_measure (MetrologyHandle, Row1, Column1, Radius1, Length1/2, Length2/2, Sigme, Threshold, [], [], Index)

49. set_metrology_object_param (MetrologyHandle, Index, 'num_measures', 35)

50. apply_metrology_model (Image, MetrologyHandle)

51. get_metrology_object_result (MetrologyHandle, Index, 'all', 'result_type', 'all_param', RectangleParameter)

52. get_metrology_object_result_contour (Contours, MetrologyHandle, 'all', 'all', 1.5)

53. get_metrology_object_measures (Contour, MetrologyHandle, 'all', 'all', Row1, Column1)

54. gen_cross_contour_xld (Cross, Row1, Column1, 3, 0.785398)

55. dev_display (Image)

56. dev_set_line_width (1)

57. dev_set_color ('red')

58. dev_display (ROI_0)

59. dev_set_color (Color[0])

60. dev_display (Contour)

61. dev_set_color (Color[1])

62. dev_display (Cross)

63. dev_set_color (Color[2])

64. dev_display (Contours)

65. dev_disp_text (RectangleParameter, 'image', RectangleParameter[0], RectangleParameter[1], 'black', [], [])

66. dev_disp_text ('metrology_model', 'window', 'top', 'left', 'black', [], [])

复制代码

你这个厉害了，还真是有点像！{:1_326:}

原理是一样的，都是运行高数极限分割的思想

原理差不多，效果一样！

楼主感谢分享
