halcon标定板超出视场范围时的标定问题(No finder pattern ...

[复制链接]
Blizzard 发表于 2020-2-29 16:48:55 | 显示全部楼层 |阅读模式
请教各位大神, 看看我这个标定板描述文件有什么问题.

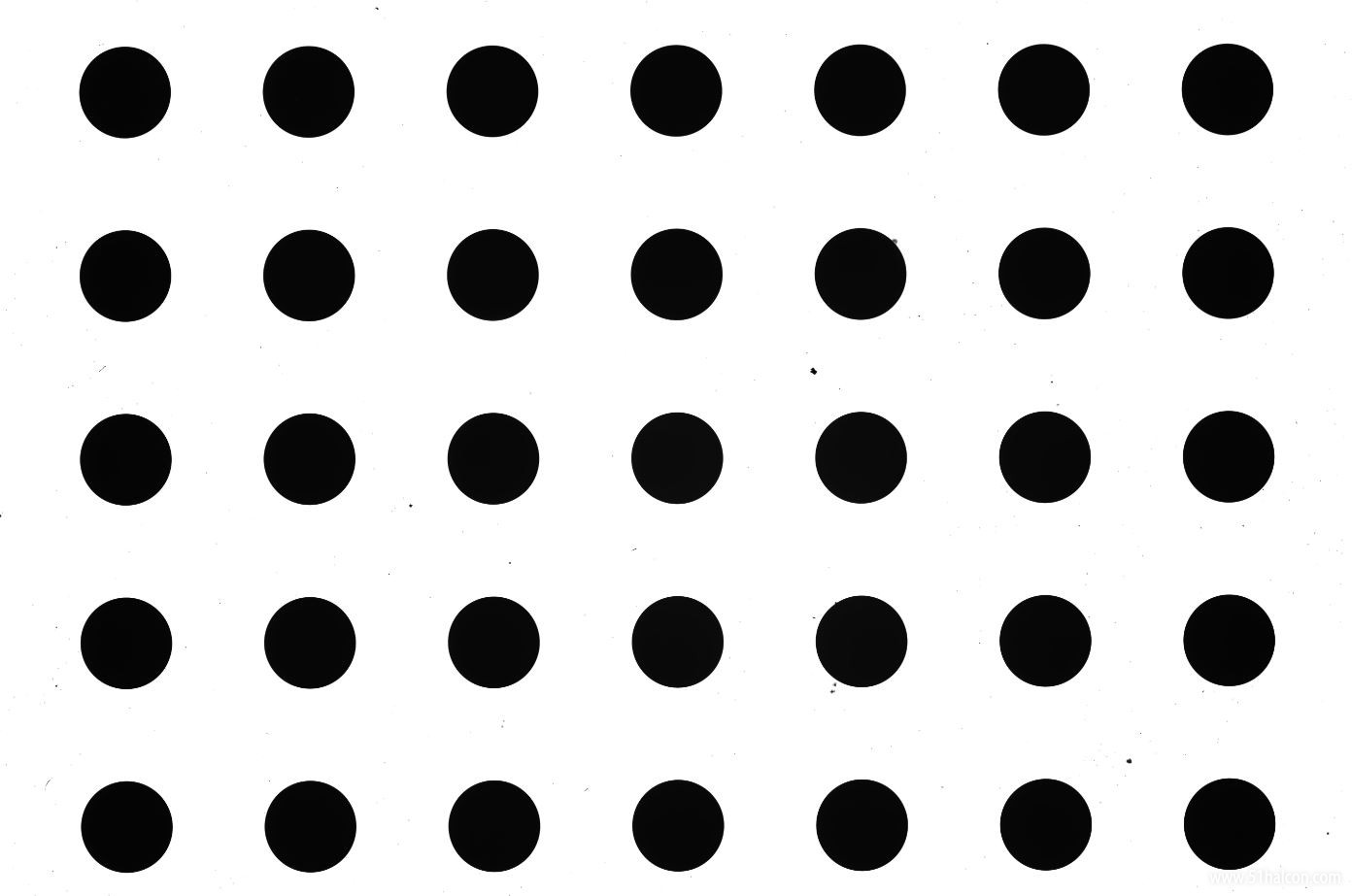

标定板数据:  小圆直径: 0.003m, 小圆中心距: 0.006m. 标定板图像如下
我现在镜头小了, 用一块大了一点的标定板来标定, 所以标定显示不完全.
于是我自己写了一个cpd文件, 文件内容如下
# Plate Description Version 3
# HALCON Version 13.0 --  Mon Feb 24 14:31:36 2020
# Description of the standard calibration plate
# used for the camera calibration in HALCON
# (generated by create_caltab)
#
#
# 5 rows x 7 columns
# Width, height of calibration plate [meter]: 0.039, 0.0319808
# Distance between mark centers [meter]: 0.006
# Number of marks in y-dimension (rows)
r 5
# Number of marks in x-dimension (columns)
c 7
# offset of coordinate system in z-dimension [meter] (optional):
z 0
# rim of the calibration plate (min x, max y, max x, min y) [meter]:
o -0.0225 0.0178923048454133 0.0225 -0.0178923048454133
# polarity of the marks (light or dark):
p light
# number of finder pattern marks:
f 5
# position of the finder patterns (central mark):  x y [index]
3 2
1 1
5 1
1 3
5 3
# calibration marks:  x y radius [meter]
# calibration marks at y = -0.012 m
-0.018 -0.012 0.0015
-0.012 -0.012 0.0015
-0.006 -0.012 0.0015
0 -0.012 0.0015
0.006 -0.012 0.0015
0.012 -0.012 0.0015
0.018 -0.012 0.0015
# calibration marks at y = -0.006 m
-0.018 -0.006 0.0015
-0.012 -0.006 0.0015
-0.006 -0.006 0.0015
0 -0.006 0.0015
0.006 -0.006 0.0015
0.012 -0.006 0.0015
0.018 -0.006 0.0015
# calibration marks at y = 0 m
-0.018 0 0.0015
-0.012 0 0.0015
-0.006 0 0.0015
0 0 0.0015
0.006 0 0.0015
0.012 0 0.0015
0.018 0 0.0015
# calibration marks at y = 0.006 m
-0.018 0.006 0.0015
-0.012 0.006 0.0015
-0.006 0.006 0.0015
0 0.006 0.0015
0.006 0.006 0.0015
0.012 0.006 0.0015
0.018 0.006 0.0015
# calibration marks at y = 0.012 m
-0.018 0.012 0.0015
-0.012 0.012 0.0015
-0.006 0.012 0.0015
0 0.012 0.0015
0.006 0.012 0.0015
0.012 0.012 0.0015
0.018 0.012 0.0015

请问为何会出错?
奖励计划已经开启,本站鼓励作者发布最擅长的技术内容和资源,流量变现就在现在,[点我]加入吧~~~Go
独孤诗雨 发表于 2020-3-2 09:08:09 | 显示全部楼层
建议使用最新的五组 新型标定板,这个问题出现的概率极大降低,新型标定板不需要整个视野都充满,保证几组在视野内即可,也在没发现标志点问题能够解决,效果提升不少。亲测
奖励计划已经开启,本站鼓励作者发布最擅长的技术内容和资源,流量变现就在现在,[点我]加入吧~~~Go
 楼主| Blizzard 发表于 2020-3-2 09:50:12 | 显示全部楼层
独孤诗雨 发表于 2020-3-2 09:08
建议使用最新的五组 新型标定板,这个问题出现的概率极大降低,新型标定板不需要整个视野都充满,保证几组 ...

第一次听说还有新的了, 不过现在的情况是用旧的一个小的标准halcon标定也可以标定, 已经采购了。

主要是希望在货到之前就搞定。 也希望能通过修改标定板描述文件, 只要有几个圆能看到就能把标定做完
