提取标签区域

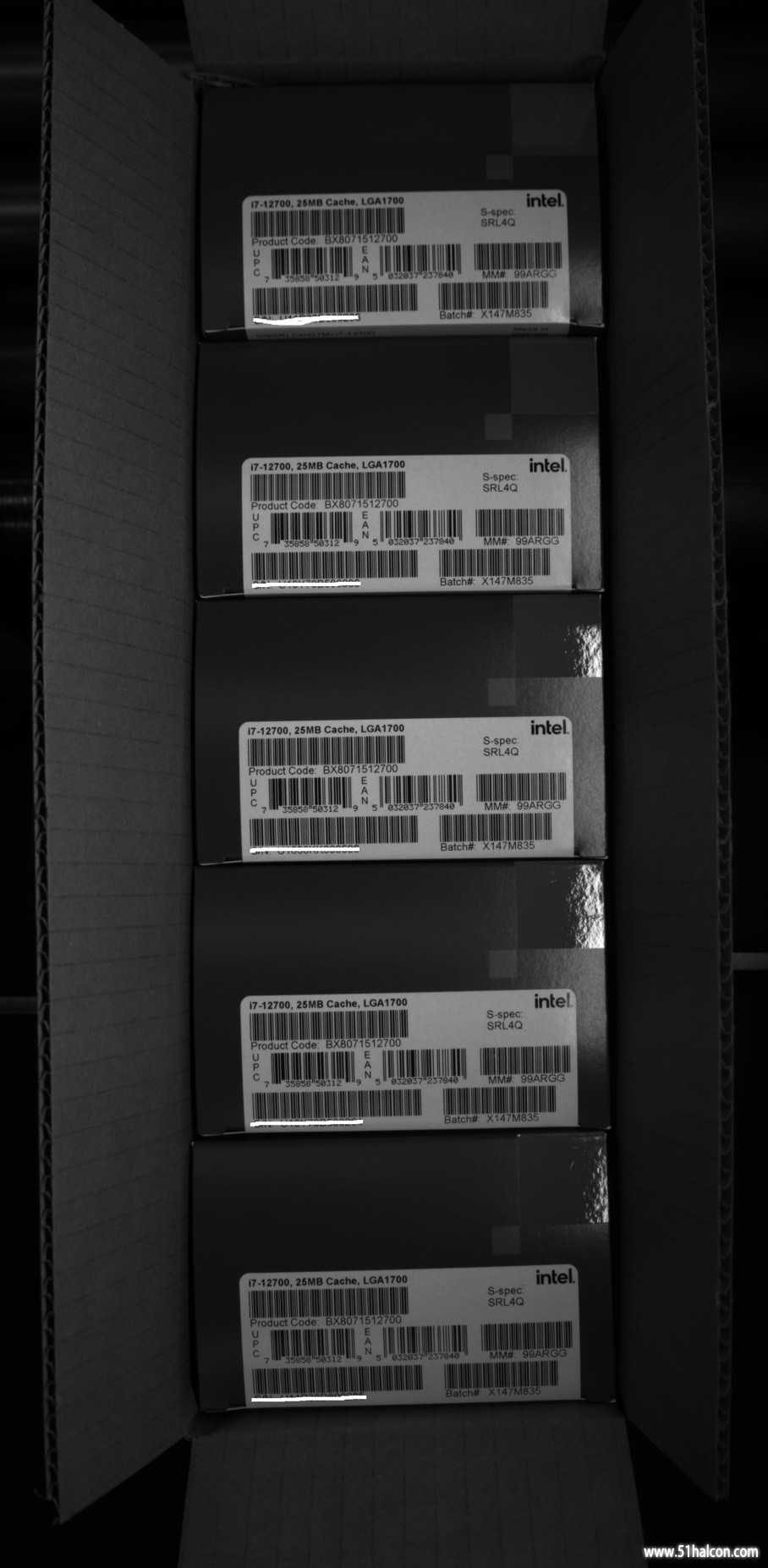

如图,如何把5张标签的区域提取出来?

1. read_image (Image5, 'D:/BMP/硬盘提取5个标签.jpg')

2. rgb1_to_gray (Image5, GrayImage)

3. get_image_size (GrayImage, Width, Height)

4. dev_close_window ()

5. dev_open_window (0, 0, Width/2, Height/2, 'black', WindowHandle)

6. ***************找区域

7. dev_display (GrayImage)

8. mean_image (GrayImage, ImageMean, 80, 80)

9. dyn_threshold (GrayImage, ImageMean, RegionDynThresh, 20, 'light')

10. connection (RegionDynThresh, ConnectedRegions)

11. fill_up (ConnectedRegions, RegionFillUp)

12. opening_rectangle1 (RegionFillUp, RegionOpening, 300, 150)

13. select_shape (RegionOpening, SelectedRegions, 'area', 'and', 150, 99999)

14. dilation_circle (SelectedRegions, RegionDilation, 10)

15. count_obj (RegionDilation, Number)

16. sort_region (RegionDilation, SortedRegions, 'character', 'true', 'row')

17. gen_empty_obj (EmptyObject)

18. for Index := 1 to Number by 1

19.     select_obj (SortedRegions, ObjectSelected, Index)

20.     reduce_domain (GrayImage, ObjectSelected, ImageReduced)

21.     crop_domain (ImageReduced, ImagePart)

22.     scale_image (ImagePart, ImageScaled, 1.5, 0.5)

23.     binary_threshold (ImagePart, Region, 'max_separability', 'light', UsedThreshold)

24.     fill_up (Region, RegionFillUp1)

25.     smallest_rectangle2 (RegionFillUp1, Row, Column, Phi, Length1, Length2)

26.     area_center (RegionFillUp1, Area, Row1, Column1)

27.     reduce_domain (ImageScaled, RegionFillUp1, ImageReduced1)

28.     hom_mat2d_identity (HomMat2DIdentity)

29.     hom_mat2d_rotate (HomMat2DIdentity, -Phi, Column1, Row1, HomMat2DRotate)

30.     affine_trans_image (ImageReduced1, ImageAffineTrans, HomMat2DRotate, 'constant', 'false')

31.     concat_obj (ImageAffineTrans, EmptyObject , EmptyObject)

32. endfor

33. ***************输出查看

34. tile_images (EmptyObject, TiledImage, 1, 'horizontal')

35. get_image_size (TiledImage, Width1, Height1)

36. dev_open_window (0, 0, Width1, Height1, 'black', WindowHandle1)

37. dev_display (TiledImage)

复制代码

新手，在学习中，仅供参考{:6_185:}
