新人求助，结构光问题

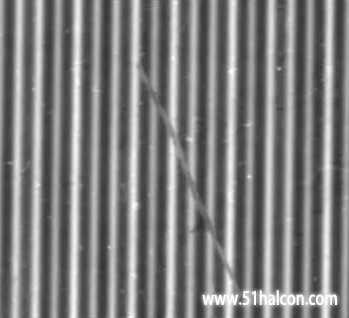

类似于图片中这种结构光打出来的缺陷要怎么提取出来呢，图片是网图有点模糊，求大佬指点下方法

1. read_image (Image, 'C:/Users/47863/Desktop/图片/170307re9ozh9lbcc4cgtj.jpg')

2. rgb1_to_gray (Image, GrayImage)

3. rgb1_to_gray (Image, GrayImage1)

4. mean_image (GrayImage, ImageMean, 15, 15)

5. dyn_threshold (GrayImage, ImageMean, RegionDynThresh, 25, 'dark')

6. dyn_threshold (GrayImage, ImageMean, RegionDynThresh1, 15, 'light')

7. union2 (RegionDynThresh, RegionDynThresh1, RegionUnion)

8. dilation_circle (RegionUnion, RegionDilation, 2)

9. erosion_circle (RegionDilation, RegionErosion, 2)

10. *求补集*

11. complement (RegionErosion, GrayImage)

12. dilation_circle (GrayImage, RegionDilation1, 1.5)

13. connection (RegionDilation1, ConnectedRegions)

14. select_shape (ConnectedRegions, SelectedRegions, 'area', 'and', 1500, 2500)

15. *做差集*

16. reduce_domain (GrayImage1, SelectedRegions, ImageReduced)

17. dev_close_window ()

18. dev_open_window (0, 0, 512, 512, 'black', WindowHandle)

19. dev_display (ImageReduced)

复制代码

很久没接触了，线结构光
