Halcon基于形状的模板匹配

总体思路

1---获取匹配图像模板
2---创建匹配模板
3---连续读取图像进行匹配

测试图片在附件里面


dev_close_window ()

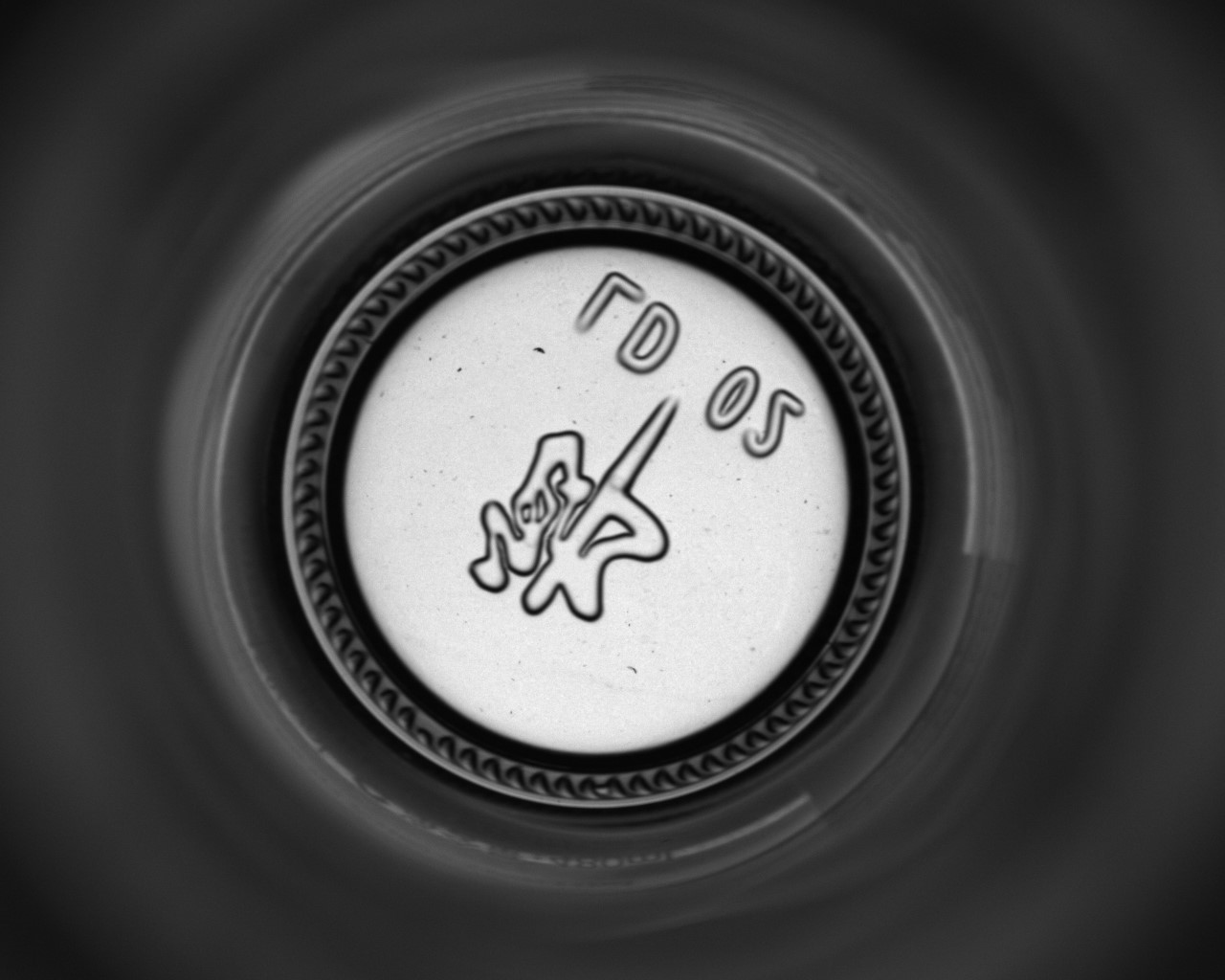

*读取模板图像
dev_clear_window ()
read_image (MImage, 'E:/资料/模板图像.jpg')
get_image_size (MImage, Width, Height)
dev_open_window (0, 0, Width, Height, 'black', WindowHandle)
dev_display (MImage)

*分割出模板
mean_image (MImage, ImageMean, 5, 5)
sobel_amp (ImageMean, EdgeAmplitude, 'sum_abs', 3)
threshold (EdgeAmplitude, Regions, 30, 255)
closing_circle (Regions, RegionClosing, 3.5)
opening_circle (RegionClosing, RegionOpening, 3.5)
connection (RegionOpening, ConnectedRegions)
select_shape_std (ConnectedRegions, SelectedRegions, 'max_area', 70)
fill_up (SelectedRegions, RegionFillUp)
reduce_domain (MImage, RegionFillUp, ImageReduced)

*创建形状模板
create_scaled_shape_model (ImageReduced, 4, rad(360), rad(360), 'auto', 0.3, 3, 'auto', 'auto', 'use_polarity', 'auto', 'auto', ModelID)

*开始匹配
for I := 1 to 10 by 1
    read_image (Image, 'E:/资料/'+ I +'.jpg')
    find_shape_model (Image, ModelID, rad(-360), rad(360), 0.5, 1, 0.5, 'least_squares', 0, 0.5, Row, Column, Angle, Score)
    dev_display_shape_matching_results (ModelID, 'green', Row, Column, Angle, 1, 1, 0)
    wait_seconds (0.5)
endfor
clear_shape_model (ModelID)
stop ()

说实话没看懂

不是一样是基于轮廓的匹配吗

实习生 发表于 2023-2-26 18:31
说实话没看懂

可以查看相应的算子帮助

Image下载后打不开

学习路上还很遥远

加油加油

谢谢楼主

nj720417 发表于 2023-3-2 10:49
Image下载后打不开

我也是一样
