字符OCR识别，新人求助

我是新人练习OCR字符识别，字符一直无法识别，不知道是问题出现在哪里，求助各位高手指点迷津谢谢！

1. dev_close_window ()

2. dev_open_window (0, 0, 512, 512, 'black', WindowHandle)

3.

4. read_image (Image, 'C:/Users/WP/Desktop/测试图像.jpg')

5. rotate_image (Image, Image1, 4, 'constant')

6. *画矩形

7. draw_rectangle1 (WindowHandle, Row1, Column1, Row2, Column2)

8. gen_rectangle1 (ModelRegion, Row1, Column1, Row2, Column2)

9. *分割图像

10. reduce_domain (Image1, ModelRegion, ModelRegionImage)

11.

12. *将分割后的图像放大显示

13. crop_domain (ModelRegionImage, ImagePart)

14. *图像增强

15. equ_histo_image (ImagePart, ImageEquHisto)

16. *增强图像对比度

17. * emphasize (ImagePart, ImageEmphasize, 7, 7, 1)

18. *图像进行旋转

19. * rotate_image (ImageEmphasize, ImagePart, 4, 'constant')

20. *将图片写入保存本地

21. write_image (ImagePart, 'tiff', 0, 'C:/Users/WP/Desktop/test.bmp')

22. decompose3 (ImagePart, r, g, b)

23. trans_from_rgb (r, g, b, h, s, v, 'hsv')

24.

25. *进行阈值分割

26. threshold (b, Regions, 38, 255)

27. connection (Regions, ConnectedRegions)

28. select_shape (ConnectedRegions, SelectedRegions, ['row','column'], 'and', [69.44,86.11], [212.04,499.07])

29. union1 (SelectedRegions, RegionUnion)

30. shape_trans (RegionUnion, RegionTrans, 'rectangle1')

31. * partition_rectangle (RegionTrans, Partitioned, 50, 50)

32.

33. dev_display (b)

34. intersection (b, RegionUnion, RegionIntersection)

35. sort_region (RegionIntersection, SortedRegions, 'character', 'true', 'column')

36.

37. read_ocr_class_mlp ('Pharma_0-9A-Z_NoRej.omc', OCRHandle)

38. do_ocr_multi_class_mlp (ConnectedRegions, Image1, OCRHandle, Class, Confidence)

39.

40. disp_message (WindowHandle, Class, 'Image', 80, Column1 + 80, 'green', 'false')


复制代码

正常识别是白底黑字的，你看你图像反转了么

图片是斜的我旋转了一下

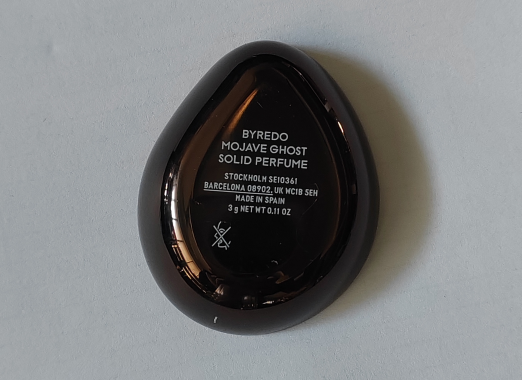

方便的话贴一下原图

原图太大了我处理了一下不过也可以

夜问夜问 发表于 2023-11-28 14:02
原图太大了我处理了一下不过也可以

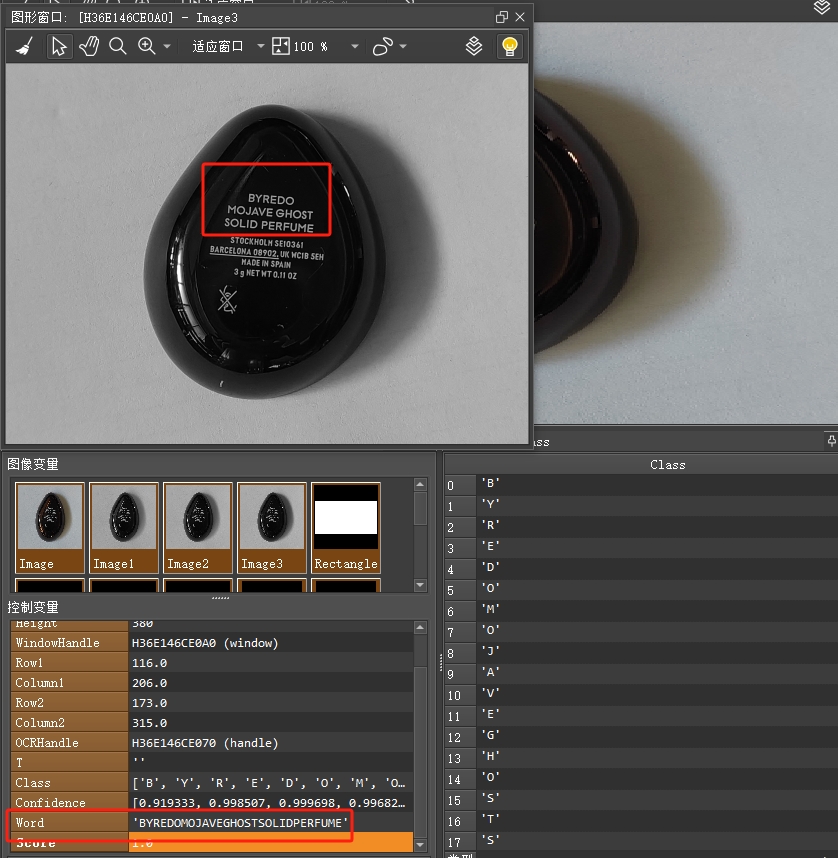

这边你看下效果，只做了上面大的字体识别

我是不是图像没有处理好呀

夜问夜问 发表于 2023-11-28 14:16
我是不是图像没有处理好呀

你这个例子不太需要什么处理，我只是在我之前测试OCR代码上改了一点点就能识别出来了

夜问夜问 发表于 2023-11-28 14:16
我是不是图像没有处理好呀

1. read_image(Image, '3')

2. get_image_size(Image, Width, Height)

3. dev_open_window(0, 0, Width, Height, 'black', WindowHandle)

4. dev_display(Image)

5. decompose3 (Image, Image1, Image2, Image3)

6. draw_rectangle1 (WindowHandle, Row1, Column1, Row2, Column2)

7. gen_rectangle1 (Rectangle, Row1, Column1, Row2, Column2)

8. reduce_domain (Image3, Rectangle, ImageReduced)

9. invert_image (ImageReduced, ImageInvert)

10. threshold (ImageReduced, Region, 90, 255)

11. connection (Region, ConnectedRegions)

12. select_shape (ConnectedRegions, SelectedRegions, 'area', 'and', 10, 50)

13. sort_region(SelectedRegions, SortedRegions1, 'character', 'true', 'row')

14. shape_trans (SortedRegions1, Characters, 'rectangle1')

15. read_ocr_class_mlp('Document_A-Z+_NoRej.omc', OCRHandle)

16. T:=''

17. do_ocr_word_mlp(Characters, ImageInvert, OCRHandle, T, 3, 1, Class, Confidence, Word, Score)

18. clear_ocr_class_mlp(OCRHandle)

19. set_display_font(WindowHandle, 16, 'mono', 'true', 'false')

20. disp_message(WindowHandle, Word, 'window', 10, 10, 'black', 'true')

复制代码

代码给你可以看看

Ggg3434 发表于 2023-11-28 14:20
read_image(Image, '3')
get_image_size(Image, Width, Height)
dev_open_window(0, 0, Width, Height, ' ...

还是大佬比较厉害，我这新手都搞不清楚图像处理遵循那些步骤
