halcon识别二维码并将二维码的中心和白油块的中心一并输出

Laocui1992 发表于 2024-4-3 11:22
感谢感谢

如果满意，请选为最佳答案

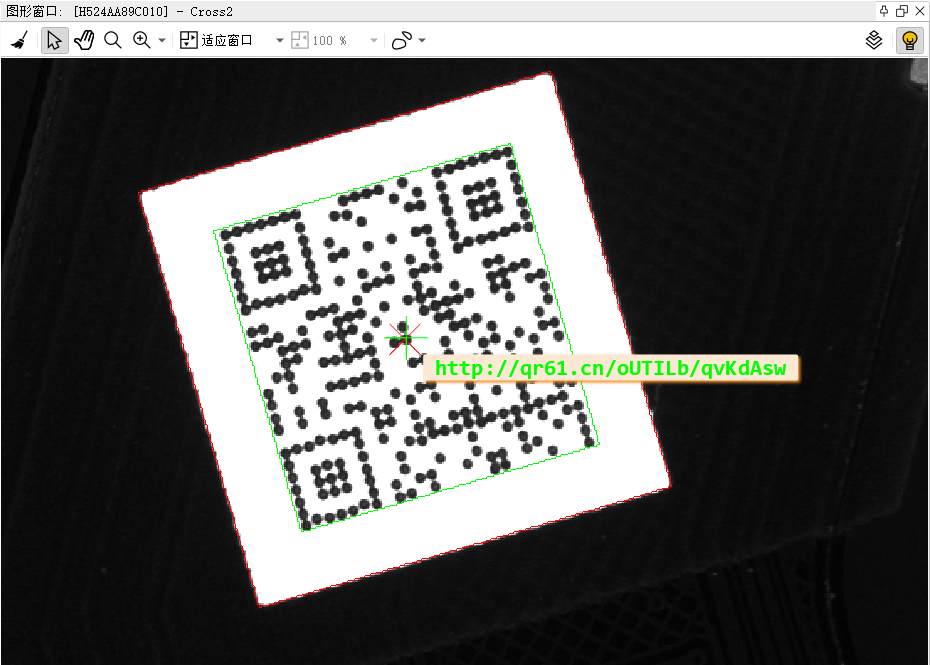

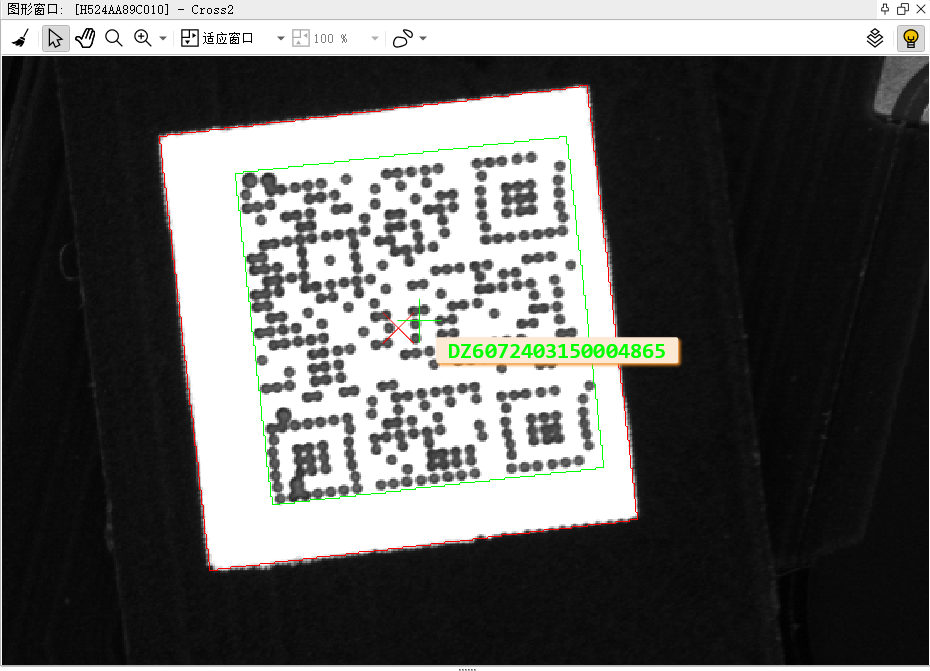

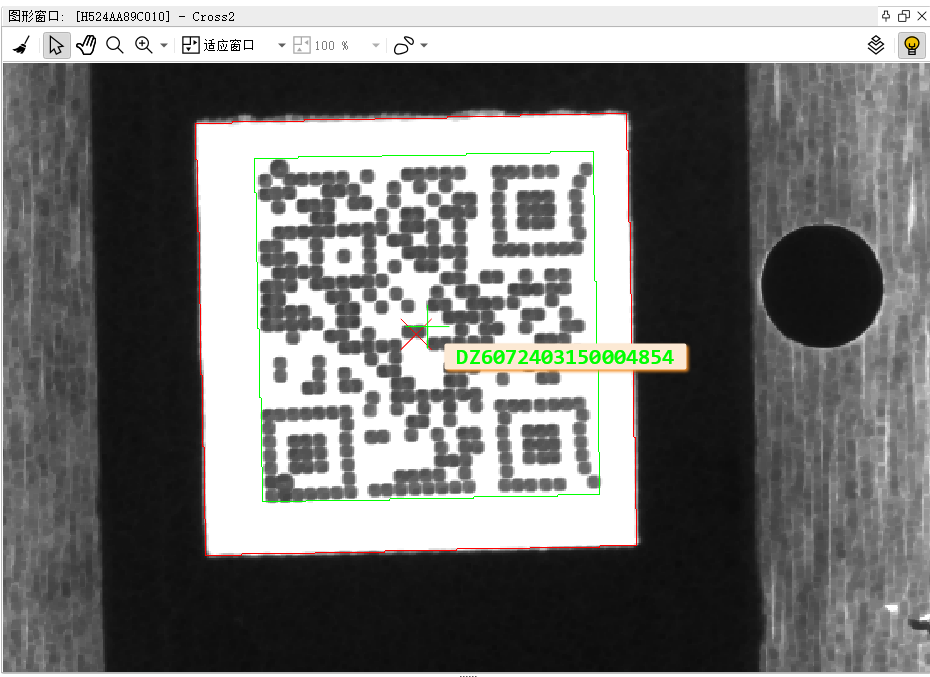

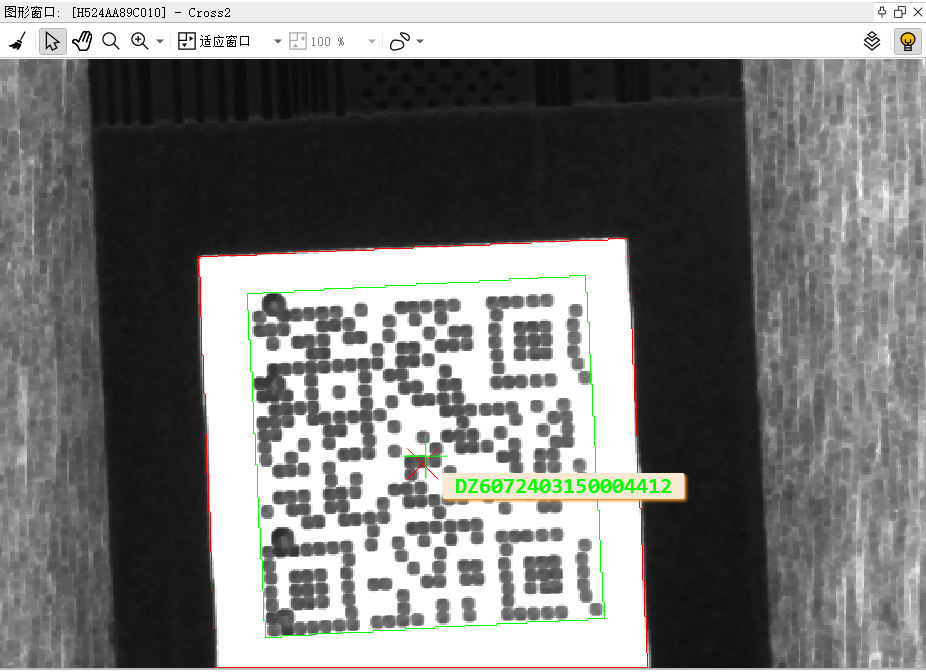

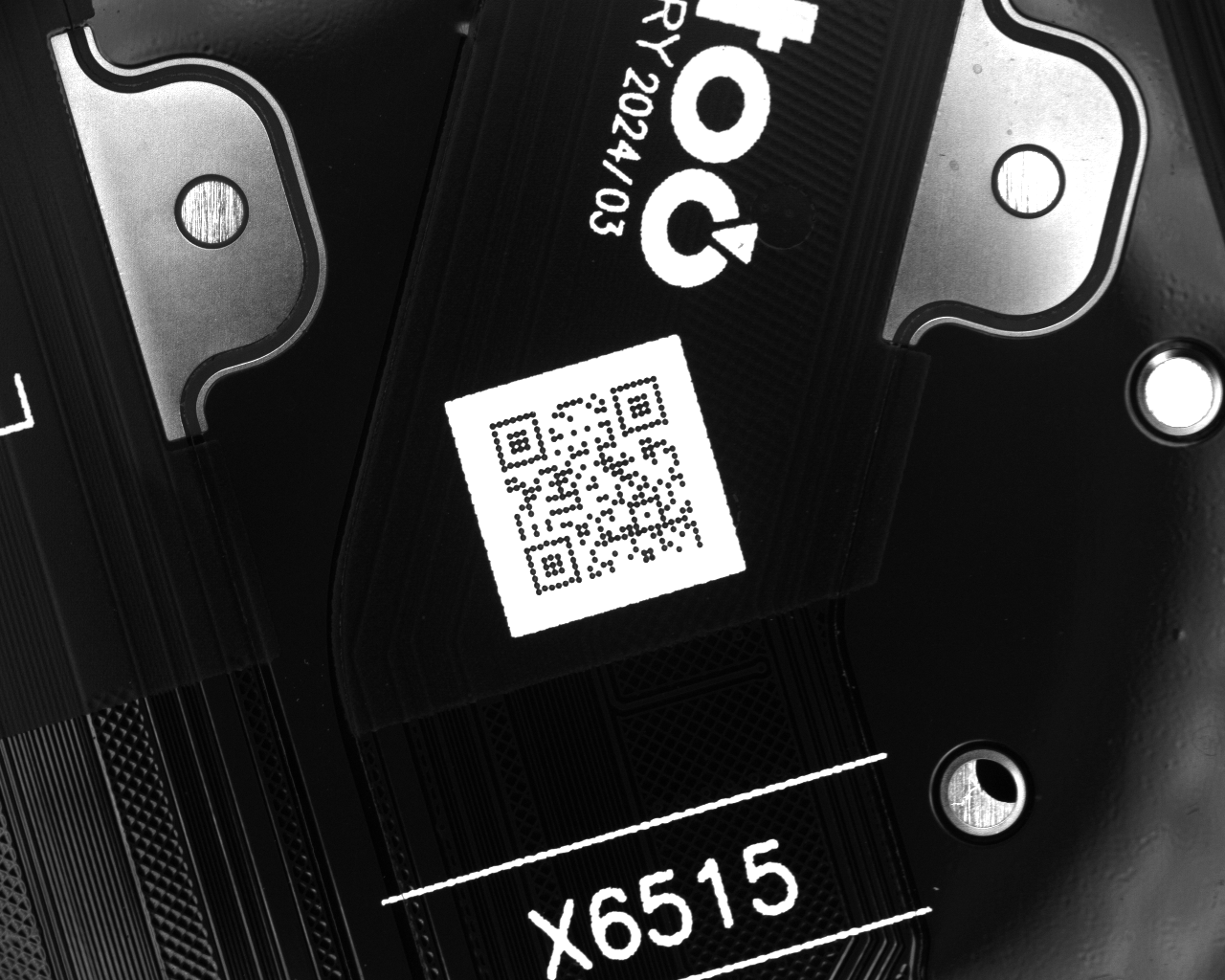

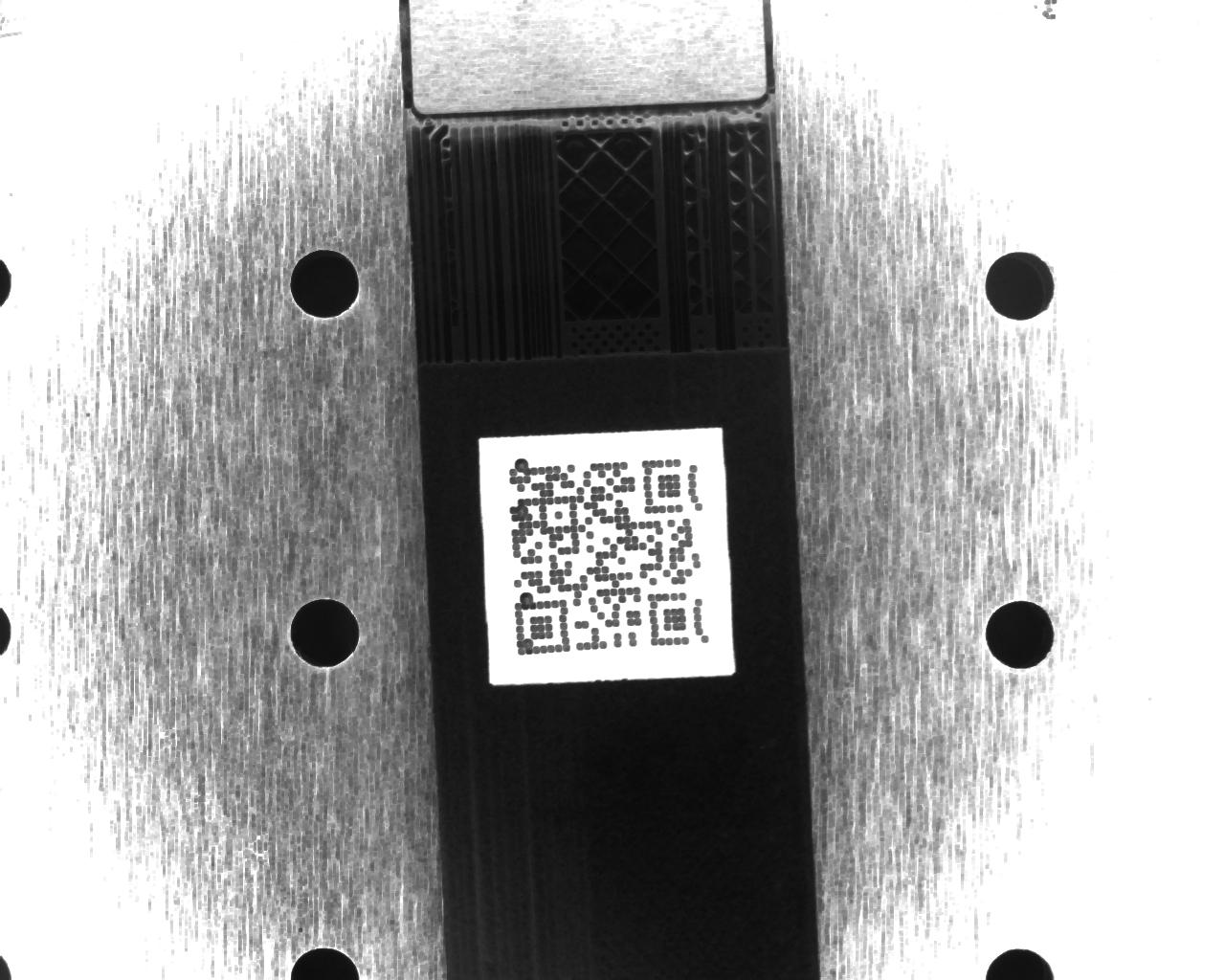

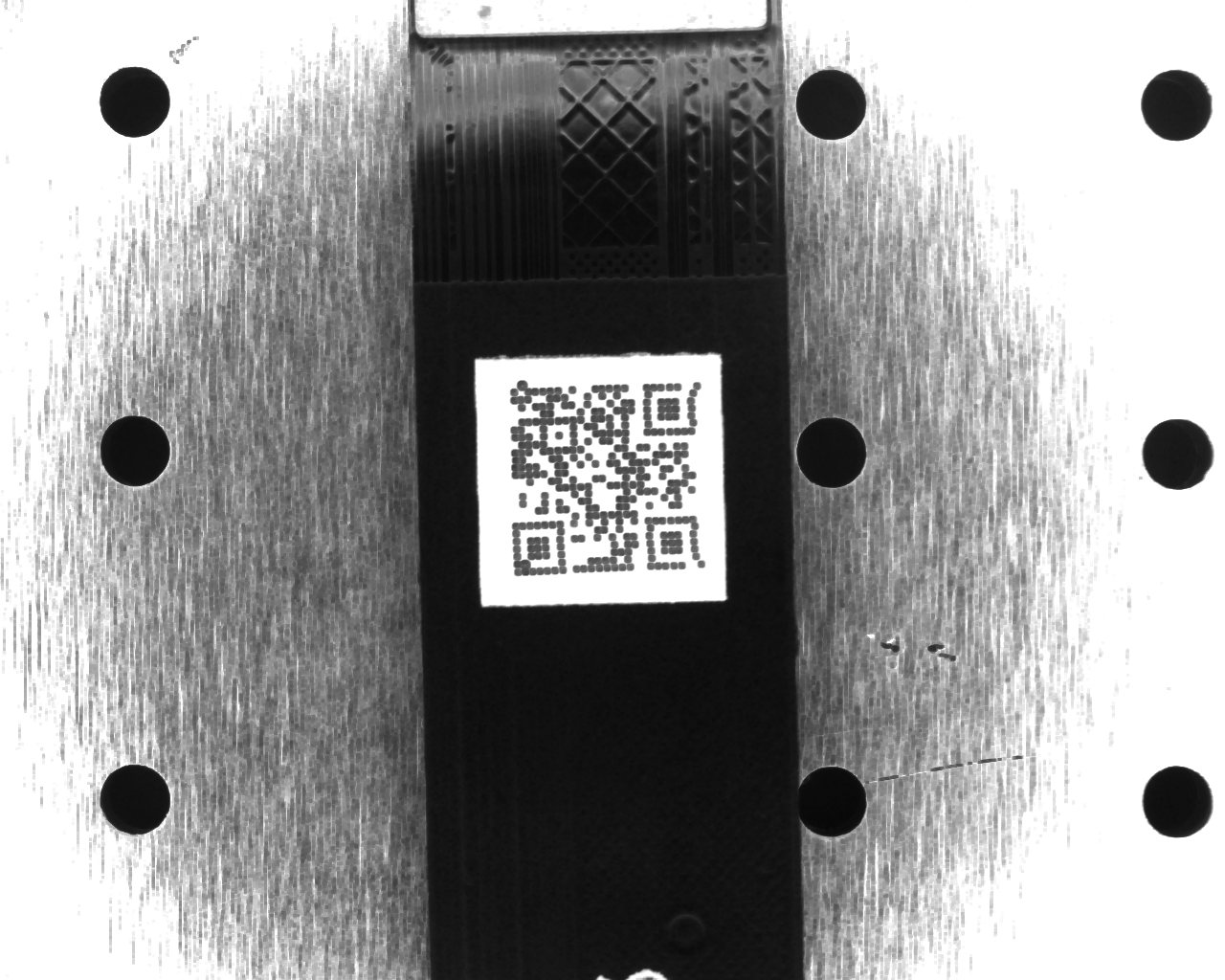

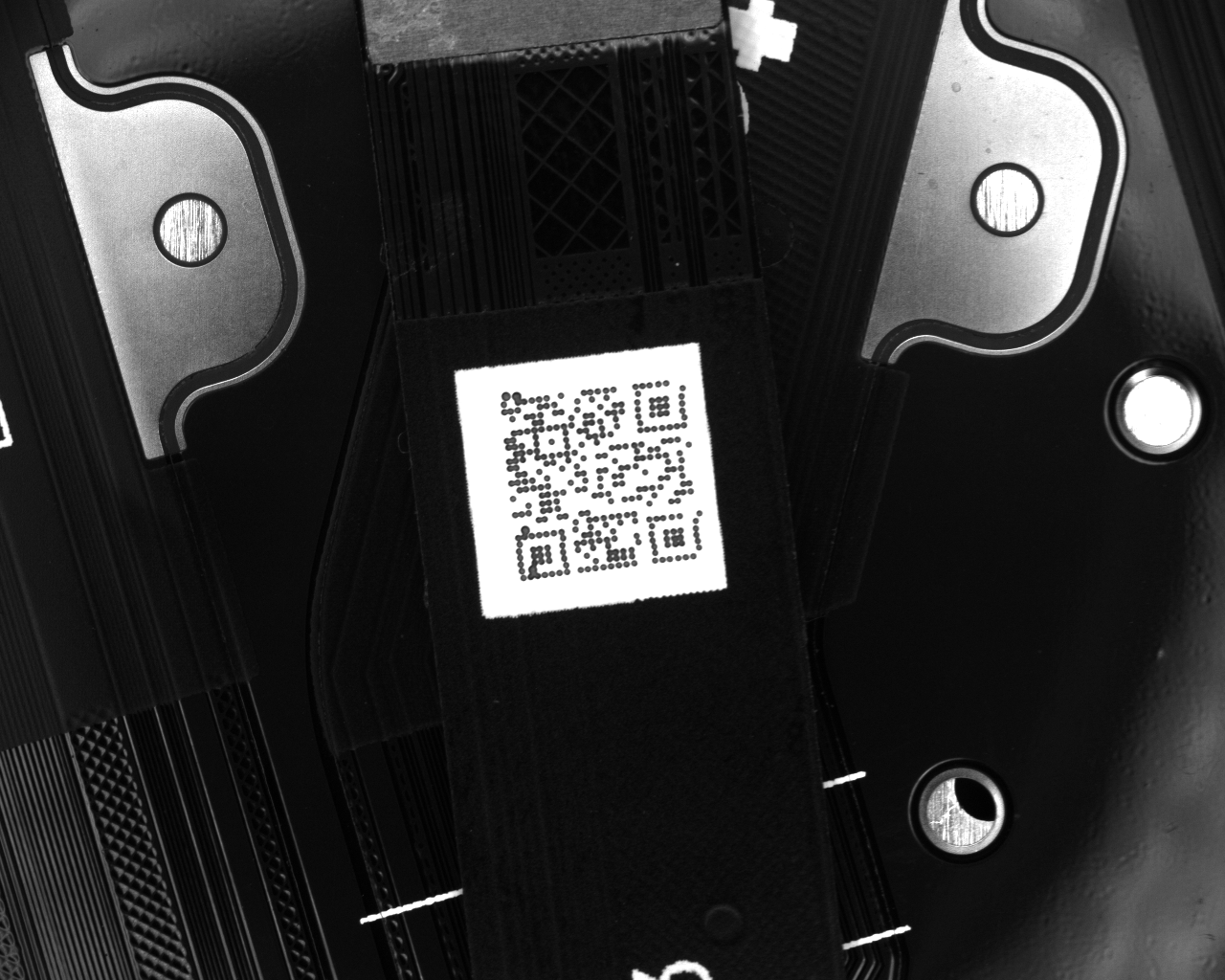

你提供的jpg图片在halcon中打不开，我把它转换成了bmp格式

1. create_data_code_2d_model ('QR Code', 'default_parameters', 'maximum_recognition', DataCodeHandle)

2. dev_get_window (WindowHandle)

3. set_display_font (WindowHandle, 20, 'mono', 'true', 'false')

4. for Index := 1 to 4 by 1

5.     read_image (Image, Index+'.bmp')

6.     threshold (Image, Region, 250, 255)

7.     fill_up (Region, RegionFillUp)

8.     connection (RegionFillUp, ConnectedRegions)

9.     select_shape (ConnectedRegions, SelectedRegions, ['area','rectangularity'], 'and', [60000,0.8], [70000,1])

10.     shape_trans (SelectedRegions, RegionTrans, 'rectangle2')

11.     area_center (RegionTrans, Area, Row, Column)

12.     gen_cross_contour_xld (Cross, Row, Column, 26, 0.785398)

13.

14.     reduce_domain (Image, RegionTrans, ImageReduced)

15.     smooth_image (ImageReduced, ImageSmooth, 'gauss', 0.5)

16.     find_data_code_2d (ImageSmooth, SymbolXLDs, DataCodeHandle, [], [], ResultHandles, DecodedDataStrings)

17.

18.     *提取二维码准确区域

19.     erosion_rectangle1 (RegionTrans, RegionErosion, 11, 11)

20.     reduce_domain (Image, RegionErosion, ImageReduced1)

21.     threshold (ImageReduced1, Region1, 0, 200)

22.     shape_trans (Region1, RegionTrans1, 'rectangle2')

23.     area_center (RegionTrans1, Area1, Row2, Column2)

24.     gen_cross_contour_xld (Cross2, Row2, Column2, 26, 0)

25.

26.     *也可直接用SymbolXLDs求二维码区域中心

27. *     area_center_xld (SymbolXLDs, Area1, Row1, Column1, PointOrder)

28. *     gen_cross_contour_xld (Cross1, Row1, Column1, 26, 0)

29.

30.     dev_display (Image)

31.     get_draw (WindowHandle, Mode)

32.     dev_set_draw ('margin')

33.     dev_set_color ('red')

34.     dev_display (RegionTrans)

35.     dev_display (Cross)

36.     dev_set_color ('green')

37.     dev_display (RegionTrans1)

38.     dev_disp_text (DecodedDataStrings, 'image', Row2+10, Column2+10, 'green', [], [])

39.     dev_display (Cross2)

40.      dev_set_draw (Mode)

41.     stop ()

42. endfor

复制代码

感谢感谢

学习一下

不错，有用

感谢分享

谢谢分享，温故而知新
