超远心镜头成像的视觉处理

超远心镜头允许以单个图像同时完成物体的顶部和侧面成像（超广角）功能。

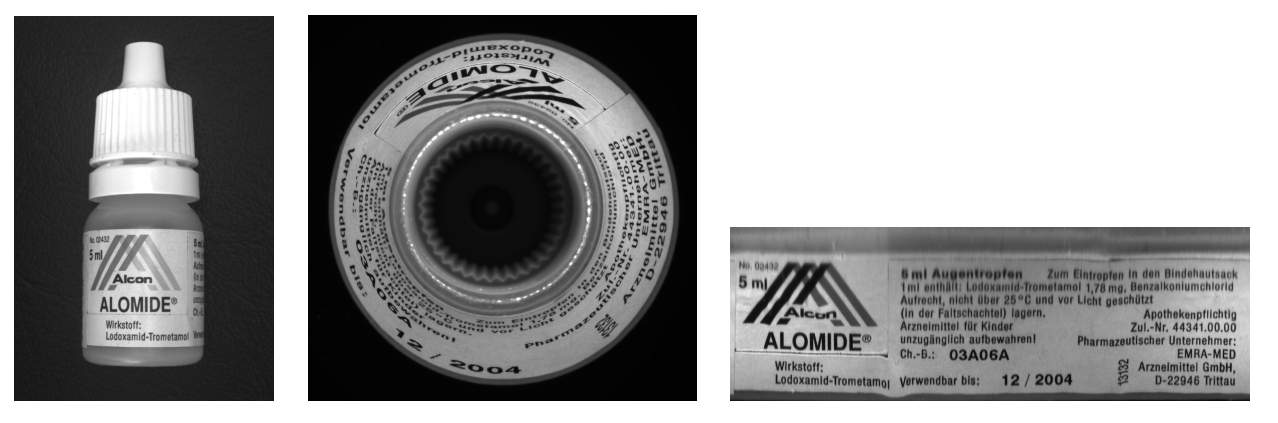

（左）使用常规镜头检查的小瓶的侧视图。（中）使用超心镜头的顶视图。（右）在相机校准和映射后，标签的展开表面。

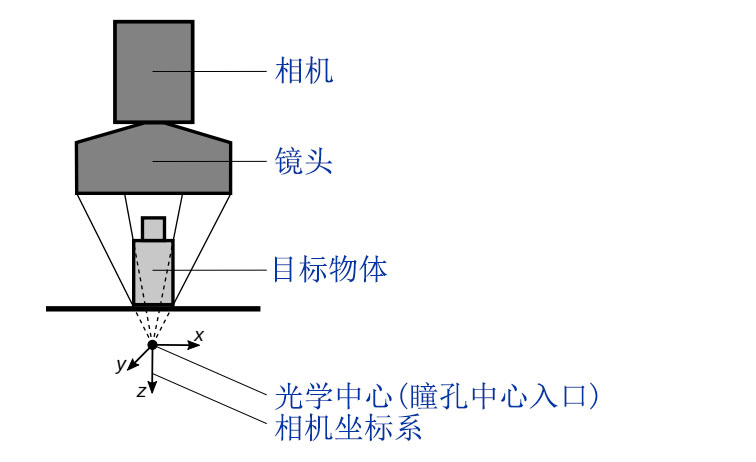

成像模型如下：

代码：

1. *

2. * This example demonstrates how to calibrate a camera

3. * with a hypercentric lens and how to unroll the label of a bottle,

4. * which can be used to perform various 360 degree inspection tasks.

5. *

6. * Prepare window.

7. dev_close_window ()

8. dev_open_window (0, 0, 700, 700, 'black', WindowHandle)

9. set_display_font (WindowHandle, 16, 'mono', 'true', 'false')

10. dev_update_off ()

11. *

12. * 1. Calibrate the camera (offline).

13. *

14. * Specify the calibration object.

15. CalTabName := 'calplate_40mm.cpd'

16. * Specify the initial camera parameters.

17. ImageWidth := 1970

18. ImageHeight := 1970

19. gen_cam_par_area_scan_hypercentric_polynomial (0.008, 0, 0, 0, 0, 0, 3.1e-006, 3.1e-006, ImageWidth / 2, ImageHeight / 2, ImageWidth, ImageHeight, CameraParamStart)

20. * Create a calibration data model.

21. create_calib_data ('calibration_object', 1, 1, CalibDataID)

22. set_calib_data_cam_param (CalibDataID, 0, [], CameraParamStart)

23. set_calib_data_calib_object (CalibDataID, 0, CalTabName)

24. *

25. get_window_param (WindowHandle, 'flush', Flush)

26. set_window_param (WindowHandle, 'flush', 'false')

27. for J := 1 to 25 by 1

28.     * Read the calibration image.

29.     read_image (Image, 'calib/calib_hypercentric_' + J$'02')

30.     * Find the calibration object in the image.

31.     find_calib_object (Image, CalibDataID, 0, 0, J, [], [])

32.     * Visualize the extracted marks.

33.     get_calib_data_observ_contours (Ellipses, CalibDataID, 'marks', 0, 0, J)

34.     dev_display (Image)

35.     dev_set_color ('green')

36.     dev_display (Ellipses)

37.     dev_disp_text ('Calibration image ' + J + ' (of 25) and extracted marks', 'window', 'top', 'left', 'black', [], [])

38.     flush_buffer (WindowHandle)

39. endfor

40. set_window_param (WindowHandle, 'flush', Flush)

41. * Perform the camera calibration.

42. calibrate_cameras (CalibDataID, Error)

43. * Query the calibrated camera parameters.

44. get_calib_data (CalibDataID, 'camera', 0, 'params_labels', CameraParamLabels)

45. get_calib_data (CalibDataID, 'camera', 0, 'params', CameraParam)

46. * Display the camera parameters.

47. display_camera_parameters (CameraParamStart, CameraParam, Error, CameraParamLabels$'-5', WindowHandle)

48. dev_disp_text ('Press Run (F5) to continue', 'window', 'bottom', 'right', 'black', [], [])

49. stop ()

50. *

51. * 2. Generate a map that can be used to unroll the surface

52. *    of a cylindrical object (offline).

53. *

54. read_image (Image, 'bottle_label/eye_drops_vial_hypercentric')

55. dev_display (Image)

56. dev_disp_text ('Top view of a vial with eye drops\nacquired with a hypercentric lens.', 'window', 'top', 'left', 'black', [], [])

57. dev_disp_text ('Press Run (F5) to continue', 'window', 'bottom', 'right', 'black', [], [])

58. stop ()

59. * Specify the radius of the cylindrical vial at its base

60. * and at its circular screw cap on top.

61. VialRadiusBase := 0.0112

62. VialRadiusTop := 0.0034

63. * Determine the pose of the vial.

64. get_vial_pose (Image, CameraParam, VialRadiusBase, VialRadiusTop, WindowHandle, VialBase, VialAxis)

65. stop ()

66. * Create a map that unrolls the labeled surface of the vial.

67. * Specify the range along the cylinder axis that should be unrolled.

68. * CylinderZStart = 0 and CylinderZEnd = 0.026

69. * means that the vial is unrolled from its circular bottom

70. * up to a height of 2.6 centimeters.

71. CylinderZStart := 0.0

72. CylinderZEnd := 0.026

73. CylinderUnrollAngleStart := rad(40)

74. MapWidth := 1500

75. MapHeight := 500

76. gen_cylinder_unrolling_map (Map, CameraParam, VialBase, VialAxis, VialRadiusBase, CylinderZStart, CylinderZEnd, CylinderUnrollAngleStart, ImageWidth, ImageHeight, MapWidth, MapHeight)

77. *

78. * 3. Unroll the surface (online)

79. *

80. * Resize the window according to the size

81. * of the unrolled image.

82. dev_resize_window_fit_size (0, 0, MapWidth, MapHeight, -1, -1)

83. * If it can be ensured that the vial always appears

84. * at the same position, the map can be used in runtime images

85. * to efficiently unwrap the surface of the vial.

86. map_image (Image, Map, ImageMapped)

87. dev_display (ImageMapped)

88. dev_disp_text ('Unrolled label', 'window', 'top', 'left', 'black', [], [])

复制代码

代码位置：

1. %HALCONEXAMPLES%\hdevelop\Calibration\Multi-View\calibrate_cameras_hypercentric.hdev

复制代码
