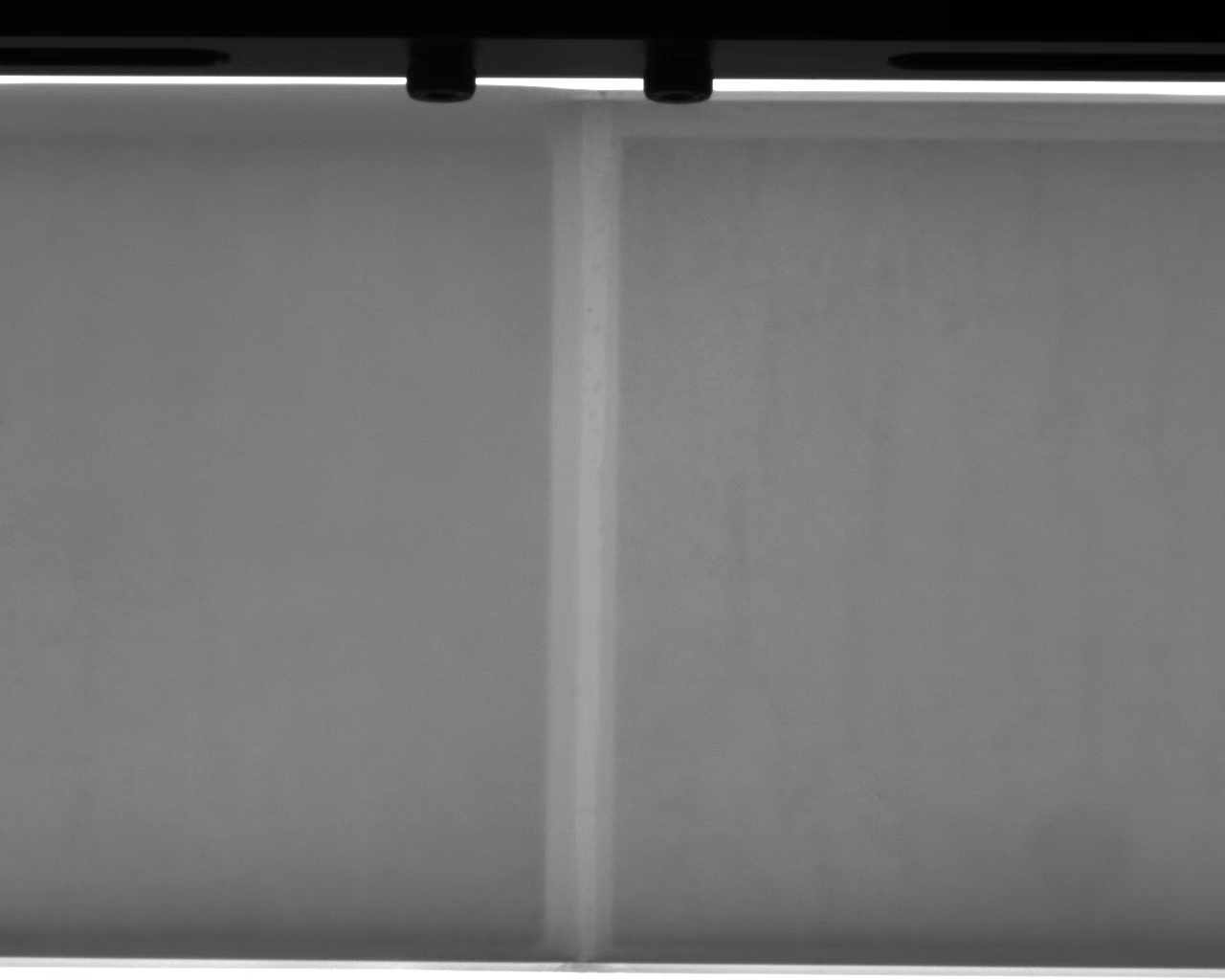

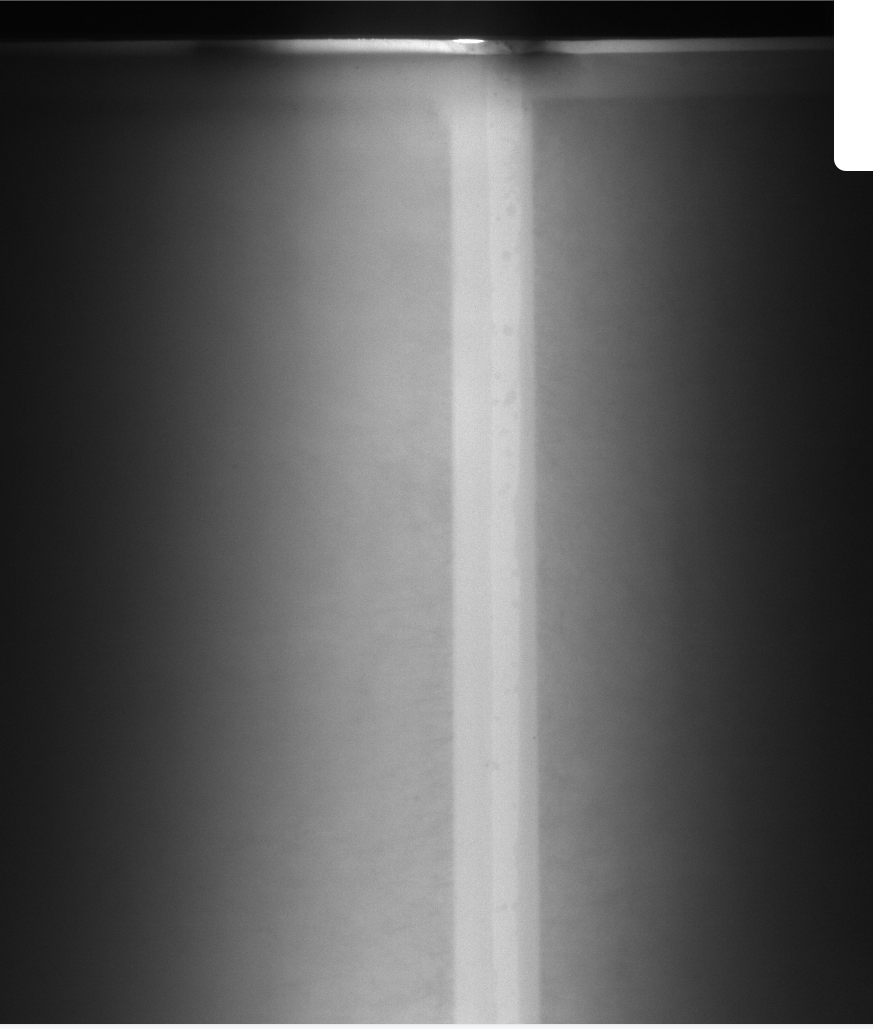

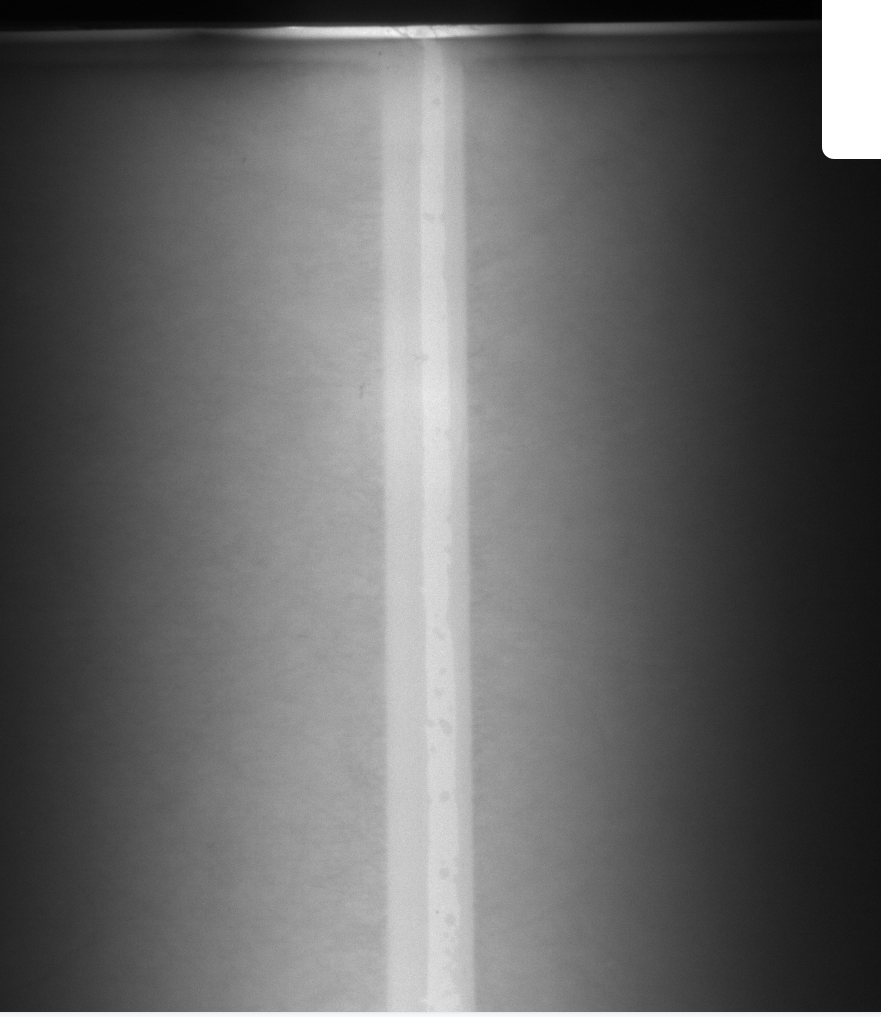

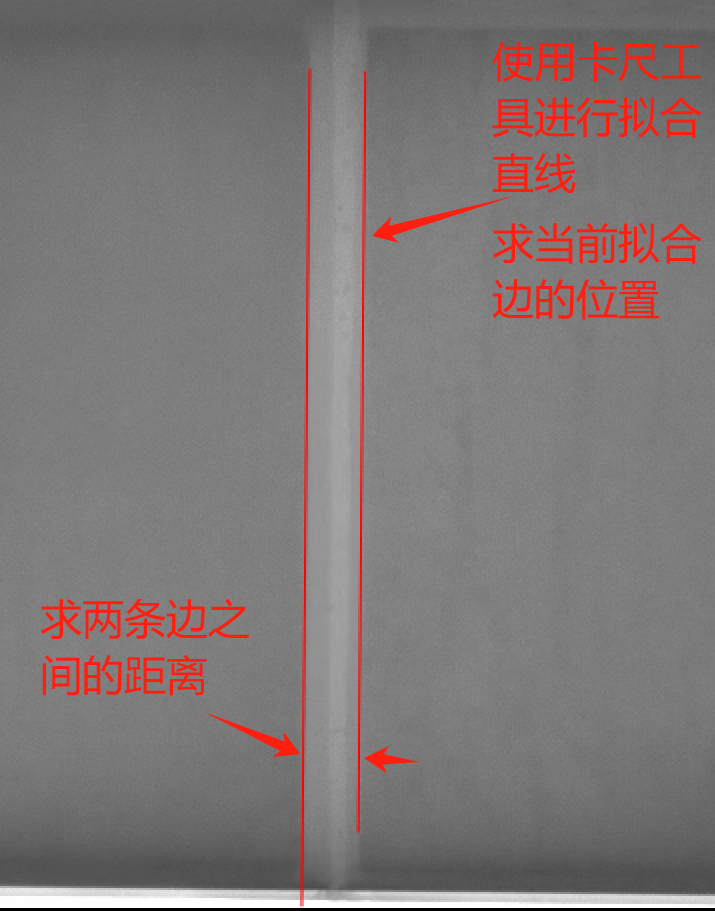

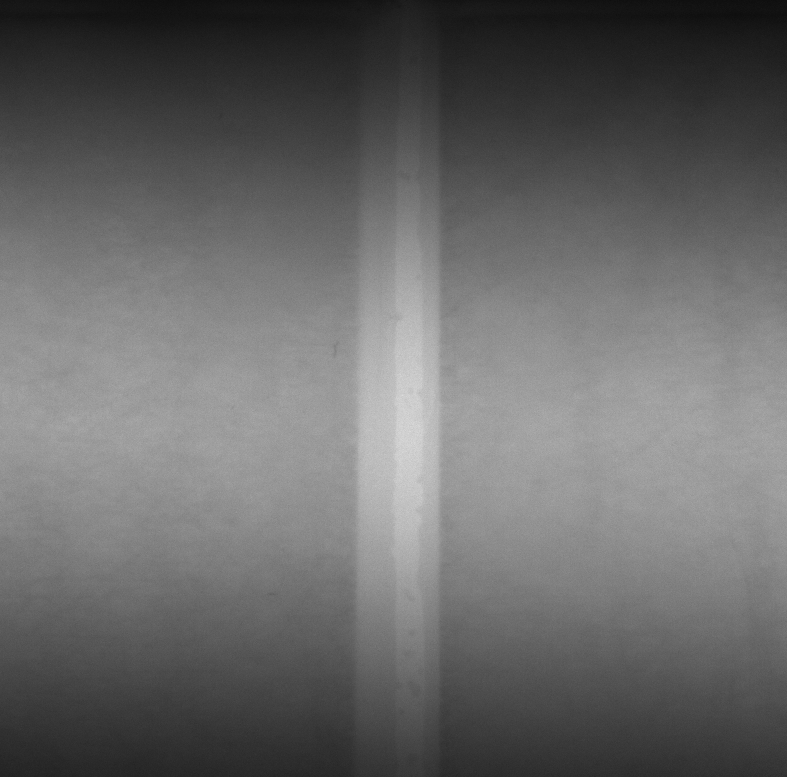

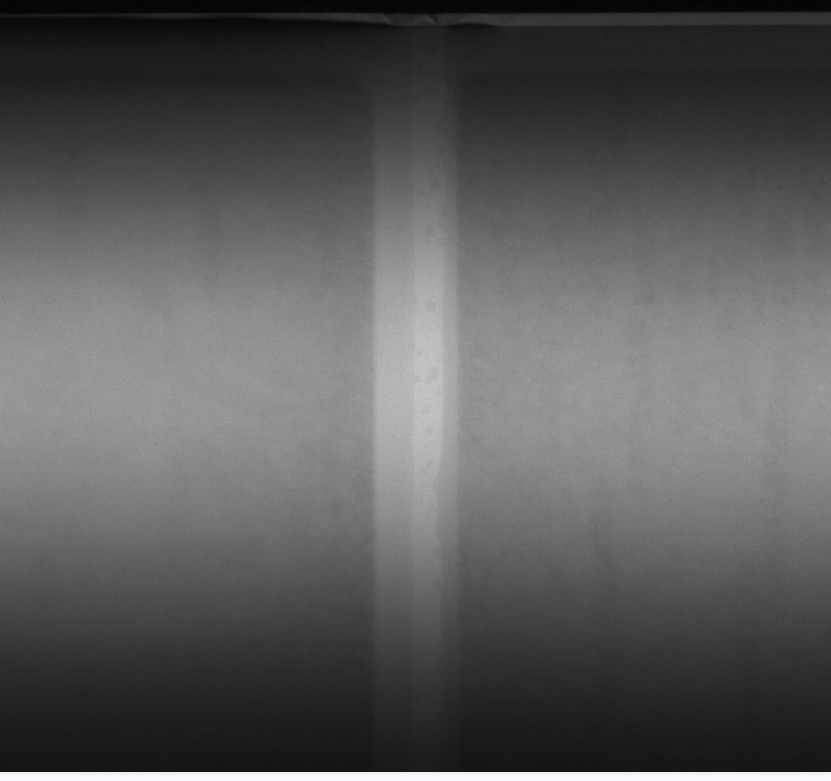

把打光的边界使用卡尺工具进行拟合直线，求两条边界之间的距离，修改对应代码

1. dev_open_window (0, 0, 512, 512, 'black', WindowHandle1)

2. * Image Acquisition 01: Code generated by Image Acquisition 01

3. list_files ('D:/工作/切割找边halcon代码/新建文件夹', ['files','follow_links'], ImageFiles)

4. tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)$','ignore_case'], ImageFiles)

5. for Index := 0 to |ImageFiles| - 1 by 1

6.     read_image (Image, ImageFiles[Index])

7.     **图像预处理，中值滤波

8.     mean_image (Image, ImageMean, 10, 180)

9.     **增强图像对比度

10.     emphasize (ImageMean, ImageEmphasize, 77, 77, 15)

11.     **提取亚像素轮廓算子

12.     edges_sub_pix (ImageEmphasize, Edges, 'canny', 2, 30, 60)

13.     **合并端点在一起的轮廓

14.     union_adjacent_contours_xld (Edges, UnionContours, 2, 1, 'attr_keep')

15.     **计算轮廓或多边形XLD的长度

16.     length_xld (UnionContours, Length)

17.     **按升序对元组的所有元素进行排序

18.     tuple_sort_index (Length, Indices)

19.     **反转一个数组

20.     tuple_inverse (Indices, Inverted)

21.     select_obj (UnionContours, ObjectSelected, Inverted[0]+1)

22.     **拟合直线

23.     fit_line_contour_xld (ObjectSelected, 'tukey', -1, 0, 5, 2, RowBegin, ColBegin, RowEnd, ColEnd, Nr, Nc, Dist)

24.     select_obj (UnionContours, ObjectSelected2, Inverted[1]+1)

25.     **拟合直线

26.     fit_line_contour_xld (ObjectSelected2, 'tukey', -1, 0, 5, 2, RowBegin1, ColBegin1, RowEnd1, ColEnd1, Nr, Nc, Dist)

27.     **生成直线

28.     gen_contour_polygon_xld(Line, [RowBegin, RowEnd], [ColBegin, ColEnd])

29.     **生成直线

30.     gen_contour_polygon_xld(Line2, [RowBegin1, RowEnd1], [ColBegin1, ColEnd1])

31.     **计算两条直线之间的距离

32.     distance_ss(RowBegin, ColBegin, RowEnd, ColEnd,  RowBegin1, ColBegin1, RowEnd1, ColEnd1,  DistanceMin, DistanceMax)

33.     dev_display (Image)

34.     disp_message(WindowHandle1, DistanceMin, 'window', 100, 100, 'red', 'true')

35.     disp_message(WindowHandle1, [RowBegin,ColBegin,RowEnd,ColEnd], 'window', 10, 10, 'red', 'true')

36.     dev_display(Line)

37.     dev_display(Line2)

38. *   dev_display (Image)

39. *   dev_display (ObjectSelected)

40. *  dev_display (ObjectSelected2)

41.     stop()

42. endfor

复制代码

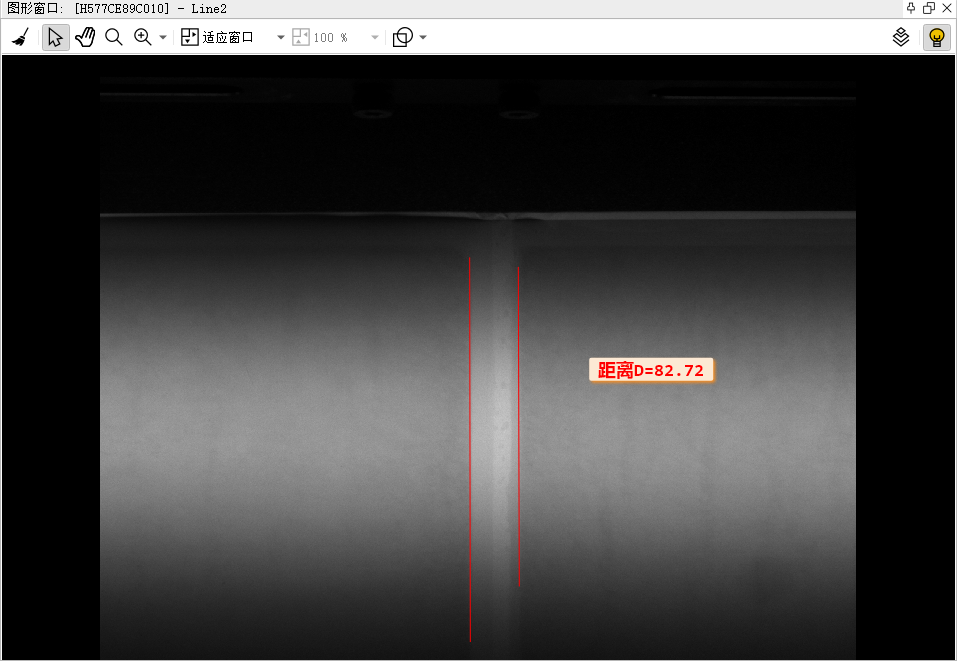

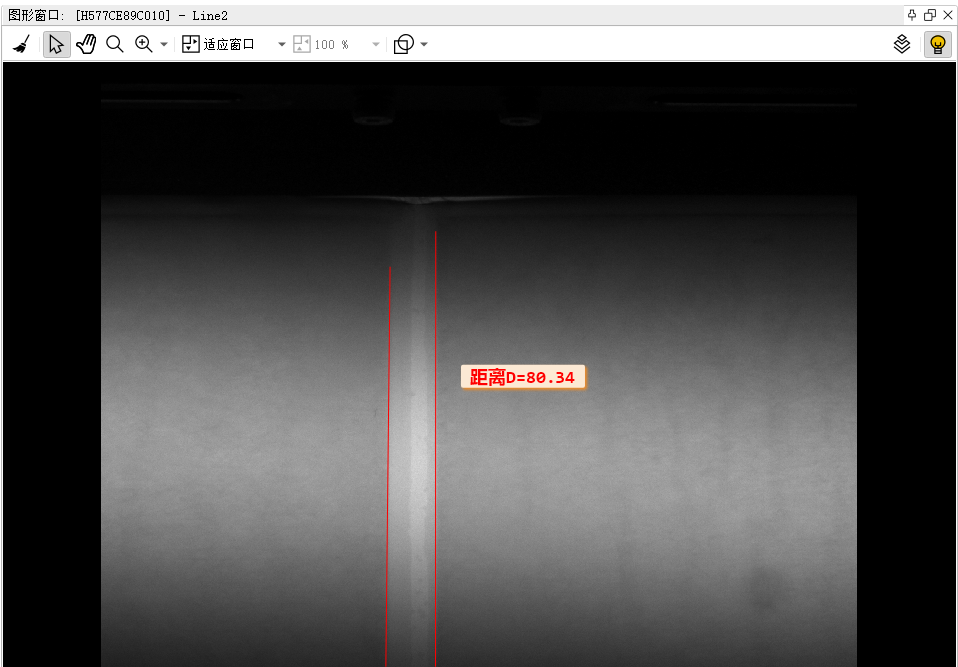

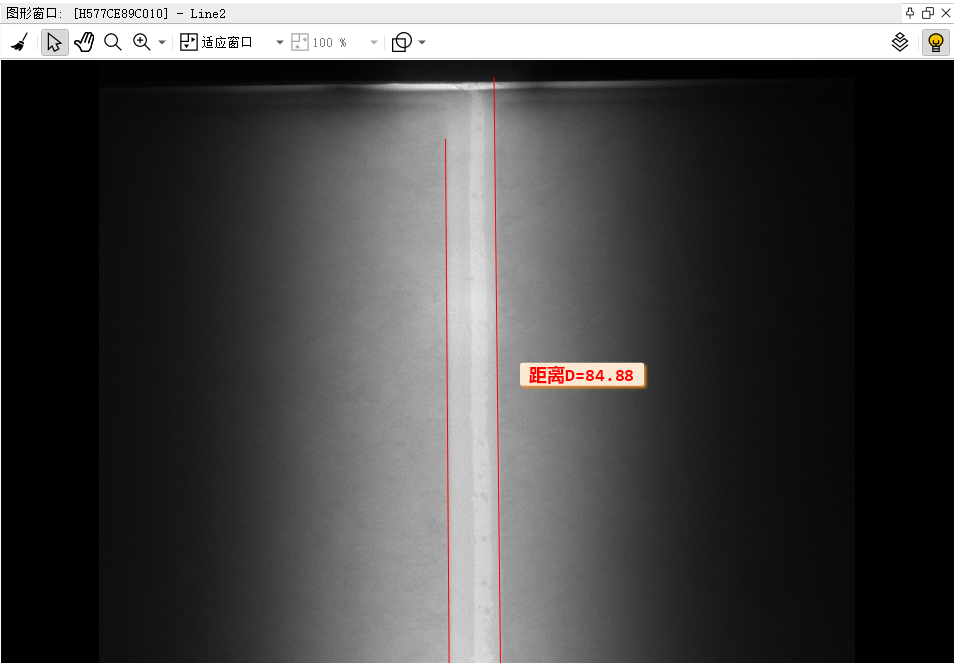

求两条直线的距离，准确来说应该是求两条平行直线的距离，不平行的直线距离是没有意义的，求平行线的距离可以取一条直线中的一点，求该点到另一条直线的距离，此图片中两条线段是近似平行的，也可以这样求，但因为线段是有长度的，所以可以依次遍历一条线段中所有点，求点到另一条线段的距离，最后求平均值

1. * Image Acquisition 01: Code generated by Image Acquisition 01

2. list_files ('C:/Users/Administrator/Desktop/新建文件夹', ['files','follow_links'], ImageFiles)

3. tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)$','ignore_case'], ImageFiles)

4. dev_get_window (WindowHandle)

5. set_display_font (WindowHandle, 16, 'mono', 'true', 'false')

6. for Index := 0 to |ImageFiles| - 1 by 1

7.     read_image (Image, ImageFiles[Index])

8.     **图像预处理，中值滤波

9.

10.     get_image_size (Image, Width, Height)

11.

12.     mean_image (Image, ImageMean, 10, 180)

13.     **增强图像对比度

14.     emphasize (ImageMean, ImageEmphasize, 77, 77, 15)

15.     **提取亚像素轮廓算子

16.     edges_sub_pix (ImageEmphasize, Edges, 'canny', 2, 30, 60)

17.     **合并端点在一起的轮廓

18.     union_adjacent_contours_xld (Edges, UnionContours, 2, 1, 'attr_keep')

19.     **计算轮廓或多边形XLD的长度

20.     length_xld (UnionContours, Length)

21.     **按升序对元组的所有元素进行排序

22.     tuple_sort_index (Length, Indices)

23.     **反转一个数组

24.     tuple_inverse (Indices, Inverted)

25.     select_obj (UnionContours, ObjectSelected, Inverted[0]+1)

26.     **拟合直线

27.     fit_line_contour_xld (ObjectSelected, 'tukey', -1, 0, 5, 2, RowBegin, ColBegin, RowEnd, ColEnd, Nr, Nc, Dist)

28.     select_obj (UnionContours, ObjectSelected2, Inverted[1]+1)

29.     **拟合直线

30.     fit_line_contour_xld (ObjectSelected2, 'tukey', -1, 0, 5, 2, RowBegin1, ColBegin1, RowEnd1, ColEnd1, Nr, Nc, Dist)

31.     **生成直线

32.     gen_contour_polygon_xld(Line, [RowBegin,RowEnd ], [ColBegin, ColEnd])

33.     **生成直线

34.     gen_contour_polygon_xld(Line2, [RowBegin1, RowEnd1], [ColBegin1, ColEnd1])

35.     **计算两条直线之间的距离

36.     distance_ss(RowBegin, ColBegin, RowEnd, ColEnd,  RowBegin1, ColBegin1, RowEnd1, ColEnd1,  DistanceMin, DistanceMax)

37.

38.     get_contour_xld (Line, Row, Col)

39.     DD:=[]

40.     for Index1 := 0 to |Row|-1 by 1

41.           distance_pl (Row[Index1], Col[Index1], RowBegin1, ColBegin1, RowEnd1, ColEnd1, Distance)

42.           DD:=[DD,Distance]

43.     endfor

44.     D:=mean(DD)

45.

46.     dev_display (Image)

47.     dev_display(Line)

48.     dev_display(Line2)

49.     dev_disp_text ('距离D='+D$'.2f', 'image', Height/2, ColBegin1+120, 'red', [], [])

50.     stop()

51. endfor

复制代码

学习一下
