hanlcon 注塑产品缺陷检测求助

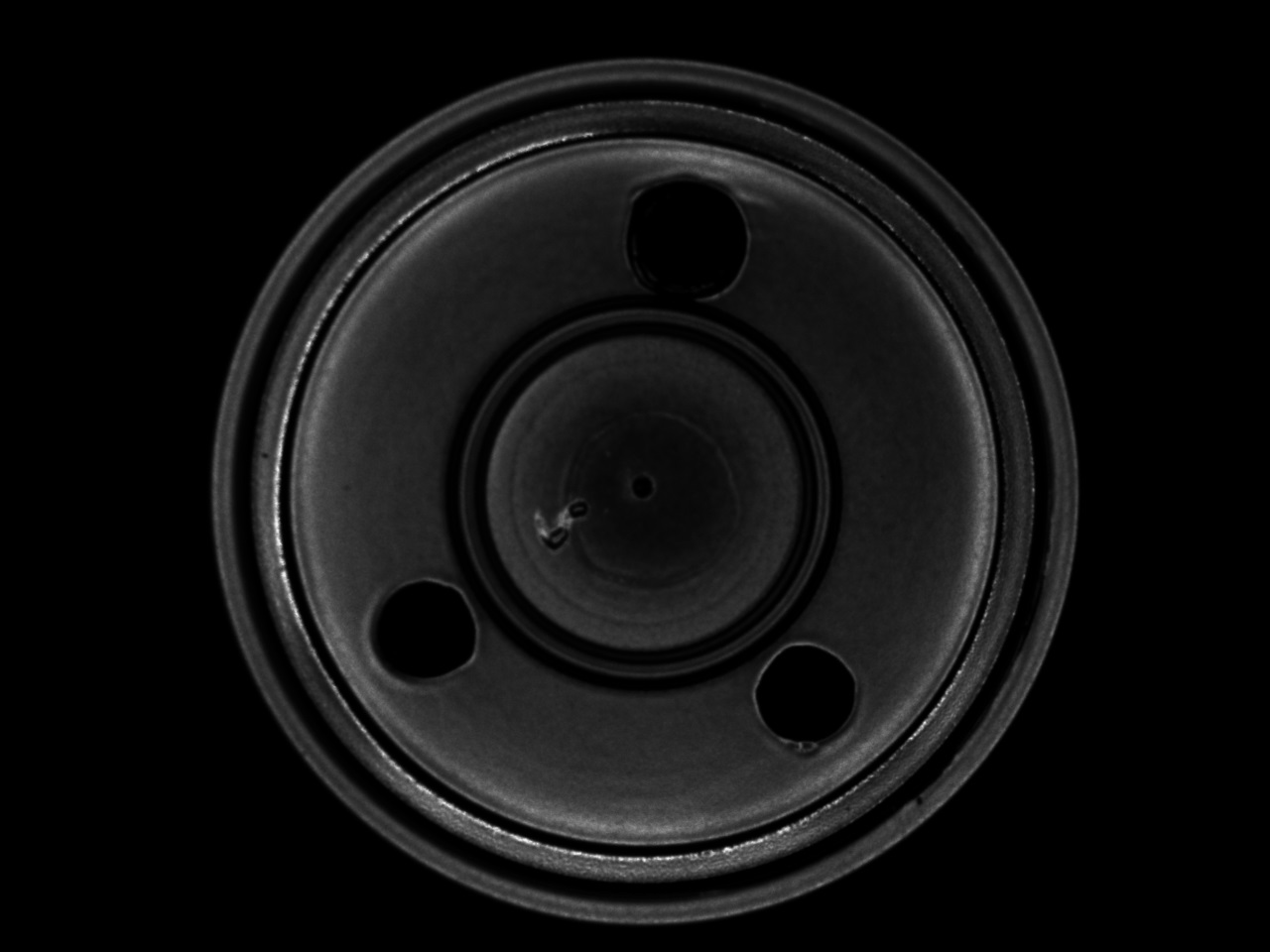

合格

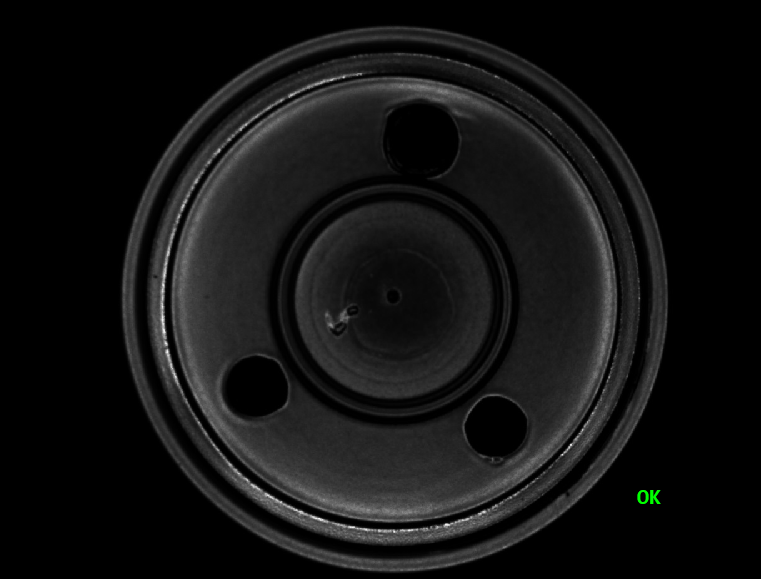

合格品

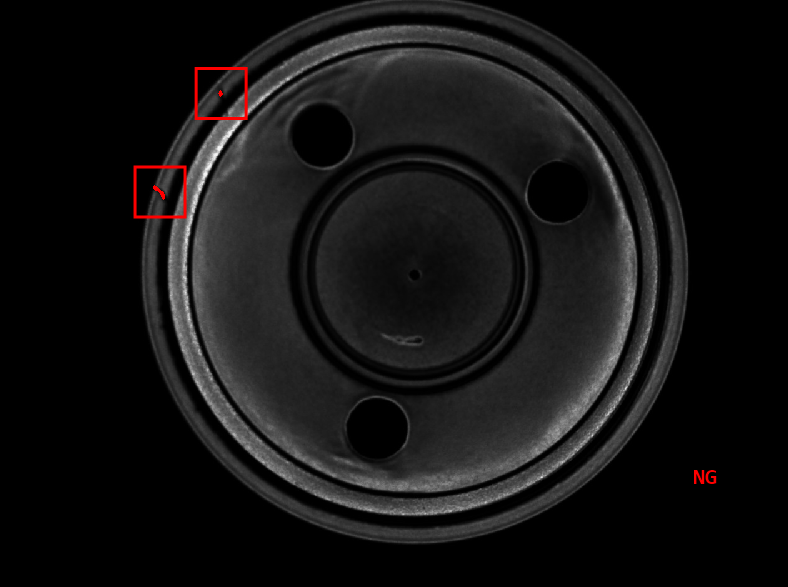

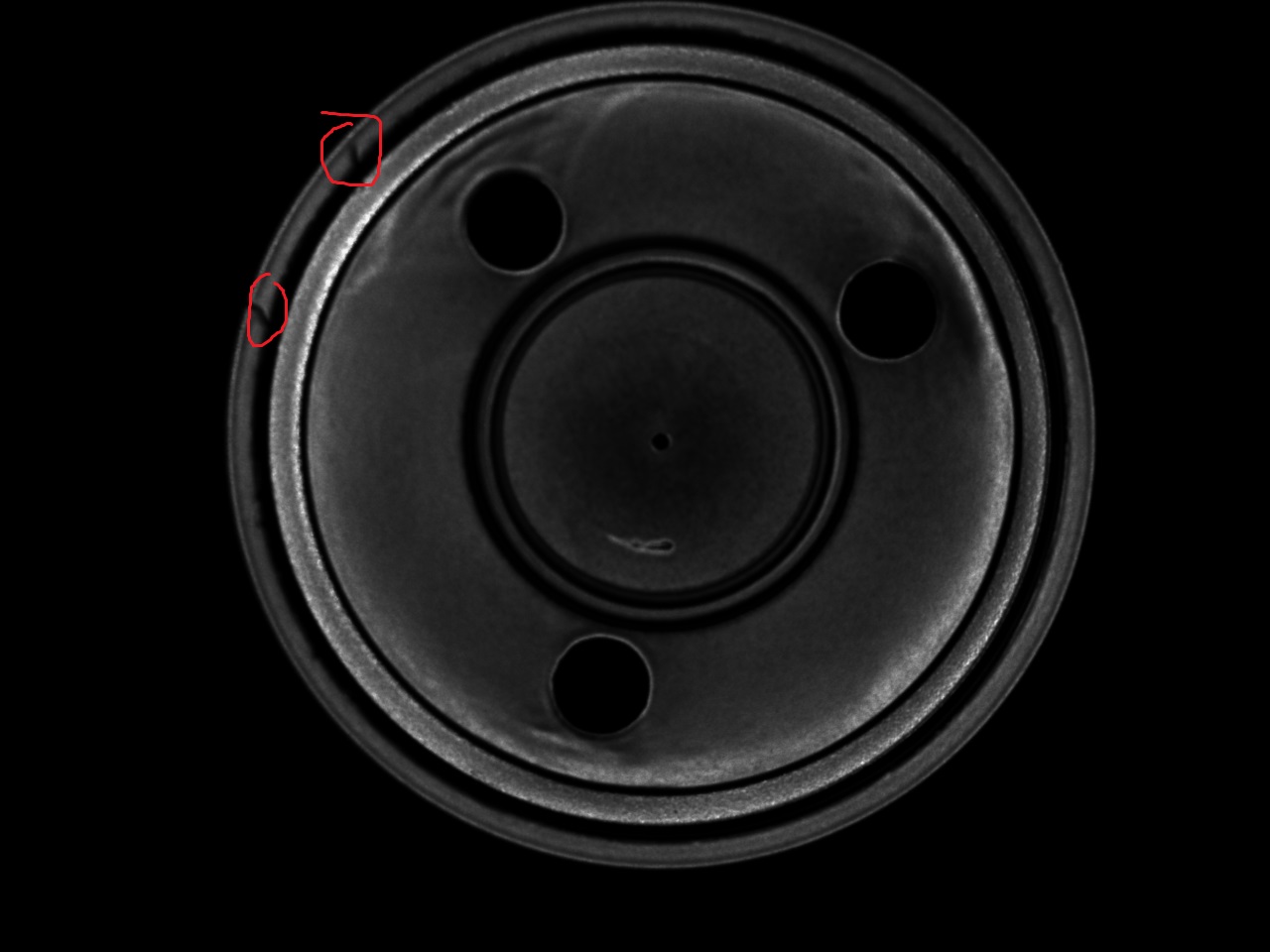

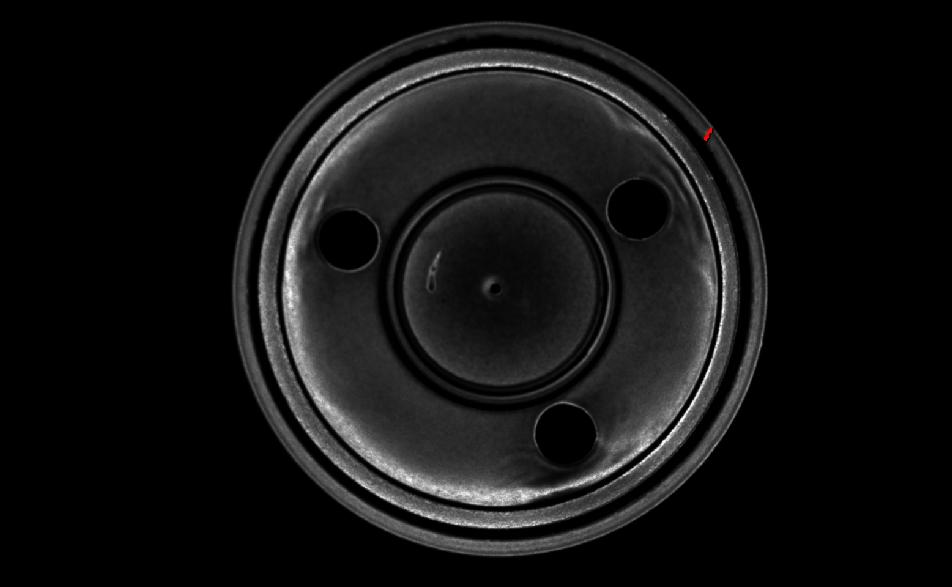

缺陷标注01

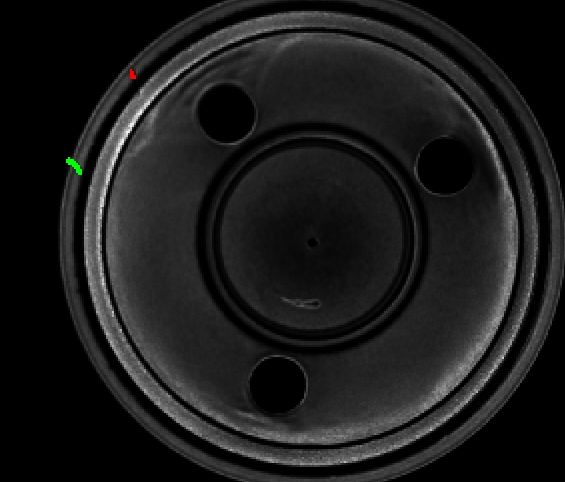

不合格01

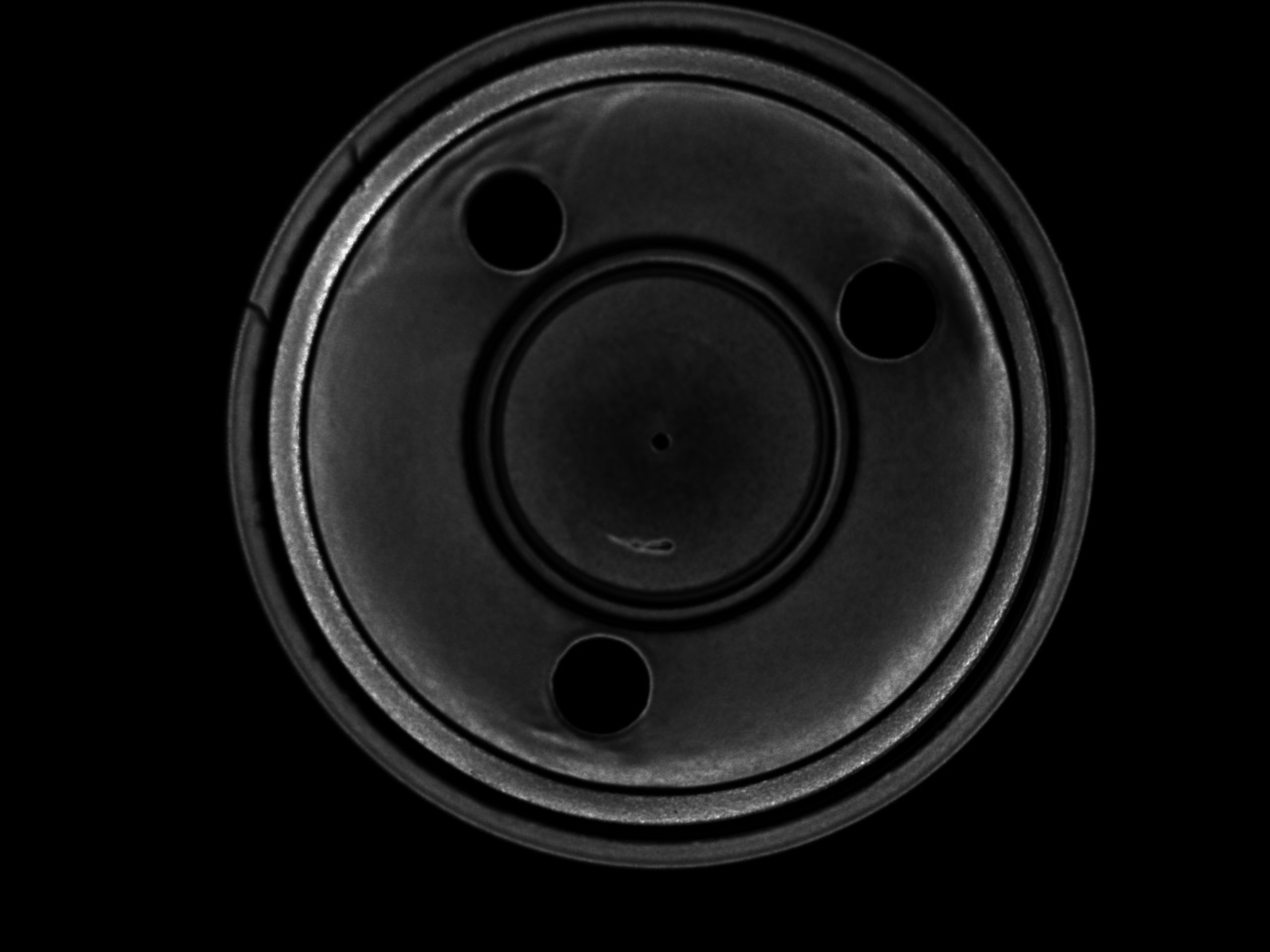

缺陷标注01原图

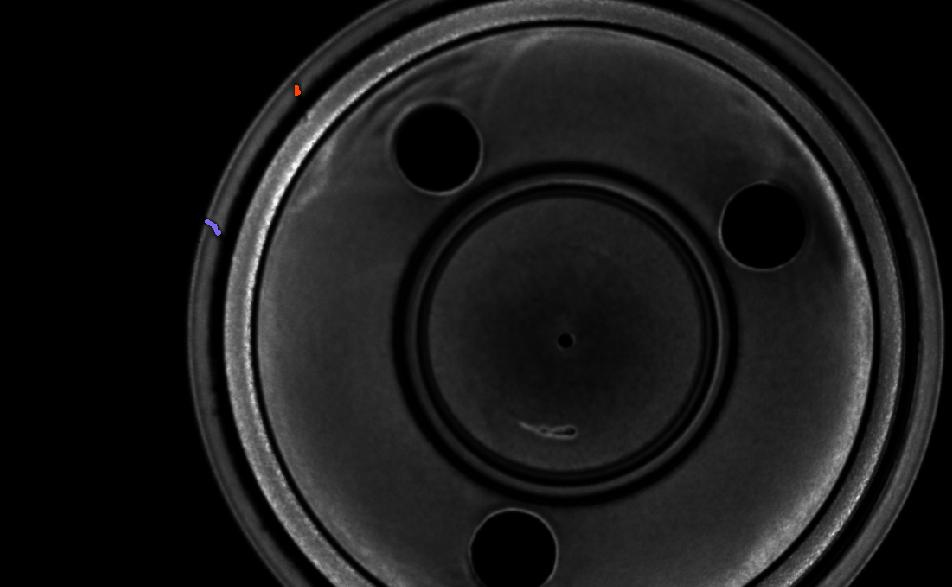

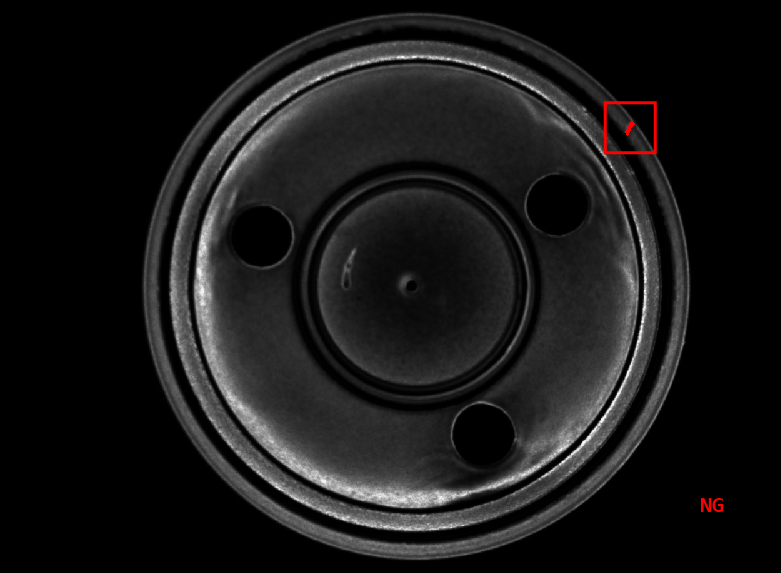

缺陷标注02

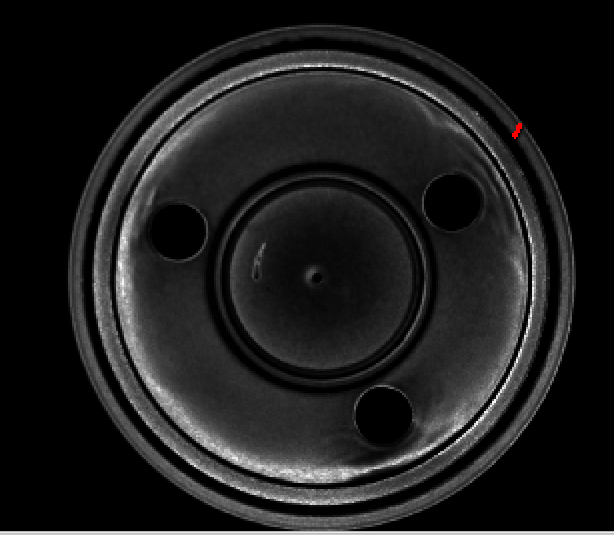

不合格02

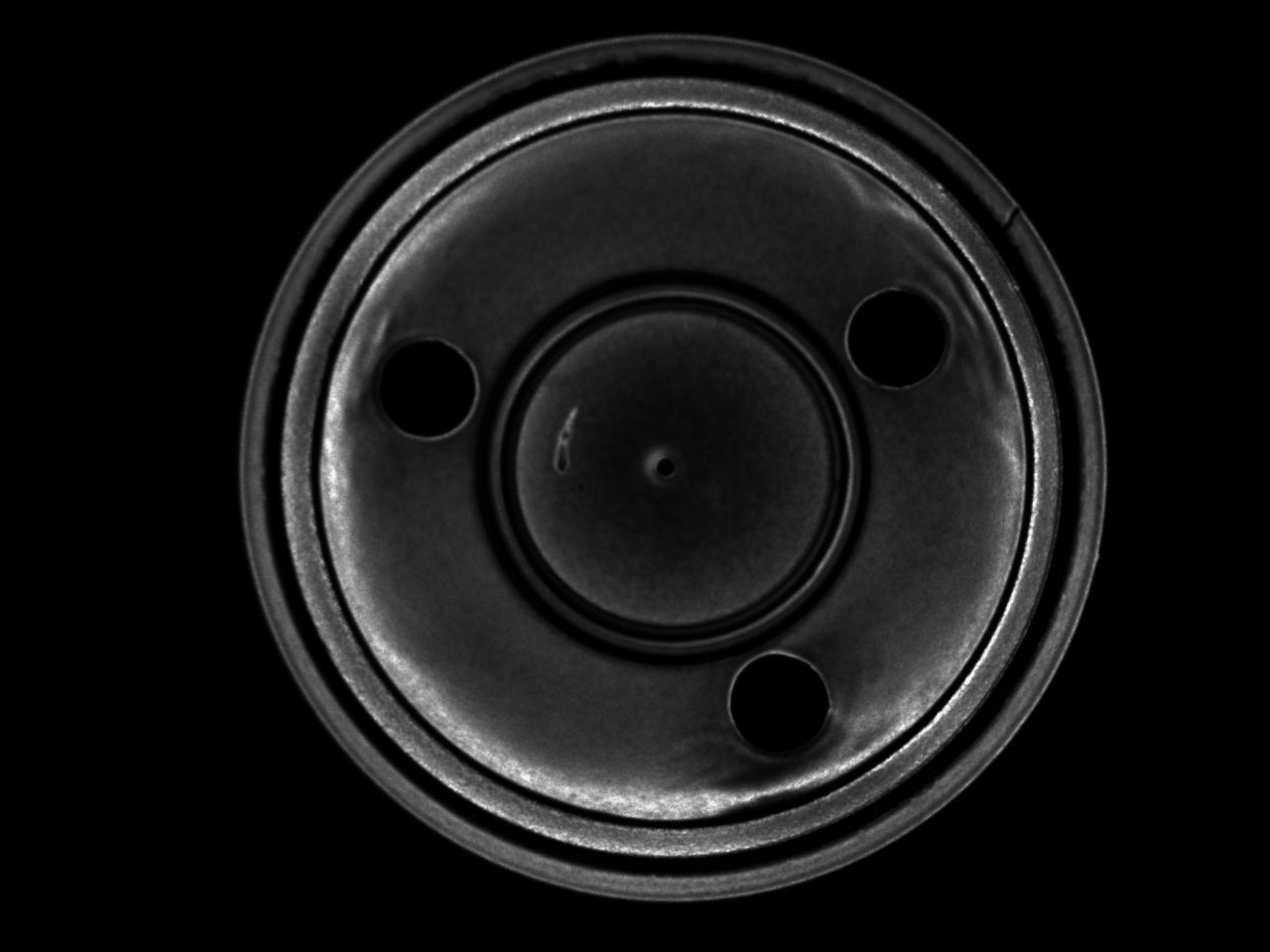

缺陷标注02原图

求助大神，请帮我写个脚本能把上图不合格处标注出来并判断结果

这个传统算法难度很大,上深度学习试试看!

可以看看

lyyyy 发表于 2024-11-18 09:43
可以看看

感谢回复，我学习下

1. <div class="blockcode"><blockquote>list_files ('D:/Desktop', ['files','follow_links'], ImageFiles)

2. tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)$','ignore_case'], ImageFiles)

3. for Index := 0 to |ImageFiles| - 1 by 1

4.     read_image (Image, ImageFiles[Index])

5.     * Image Acquisition 02: Do something

6.     rgb1_to_gray (Image, GrayImage1)

7.     threshold (GrayImage1, Regions, 17, 212)

8.     connection (Regions, ConnectedRegions1)

9.     select_shape (ConnectedRegions1, SelectedRegions, 'outer_radius', 'and', 400, 99999)

10.     closing_circle (SelectedRegions, RegionClosing, 4.5)

11.     opening_circle (RegionClosing, RegionOpening3, 10.5)

12.     reduce_domain (GrayImage1, RegionOpening3, ImageReduced1)

13.      connection (ImageReduced1, ConnectedRegions2)

14.     threshold (ImageReduced1, Regions1, 0, 23)

15.     opening_circle (Regions1, RegionOpening2, 1)

16.     connection (RegionOpening2, ConnectedRegions3)

17.     select_shape (ConnectedRegions3, SelectedRegions1, 'area', 'and', 10, 209)

18.     opening_circle (SelectedRegions1, RegionOpening1, 2.5)

19.

20.     dev_display (Image)

21.     dev_display (RegionOpening1)

22.

23.

24. endfor

复制代码

1. dev_update_off ()

2. dev_set_draw ('margin')

3. read_image (Image, '')

4. rgb1_to_gray (Image, GrayImage)

5. gen_circle (ROI_0, 476.041, 678.892, 454.022)

6. gen_circle (TMP_Region, 476.041, 673.706, 415.755)

7. difference (ROI_0, TMP_Region, RegionDifference)

8. reduce_domain (GrayImage, RegionDifference, ImageReduced)

9. threshold (ImageReduced, Regions, 25, 143)

10. closing_circle (Regions, RegionClosing, 5)

11. difference (RegionClosing, Regions, RegionDifference1)

12. dev_set_draw ('fill')

13. opening_rectangle1 (RegionDifference1, RegionOpening, 4, 4)

复制代码

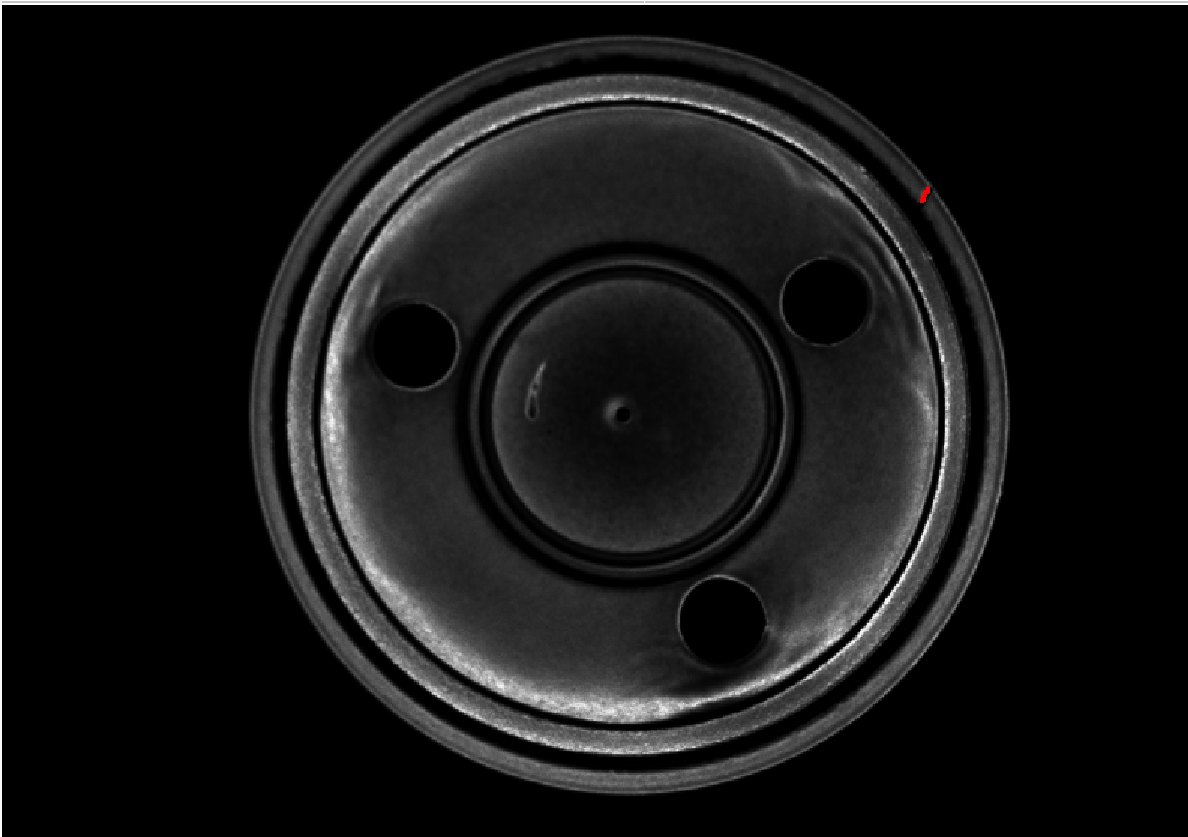

有用,感谢楼主

感谢楼主及各位老师

1. dev_update_off ()

2. dev_close_window ()

3. read_image (Image1, '')

4. dev_open_window_fit_image (Image1, 0, 0, -1, -1, WindowHandle1)

5. for index := 1 to 3 by 1

6. read_image (Image1, 'C:/Users/86151/Desktop/1/注塑产品缺陷/'+index$'01')

7. rgb1_to_gray (Image1, GrayImage)

8. threshold (GrayImage, Regions, 4, 255)

9. connection (Regions, ConnectedRegions)

10. select_shape (ConnectedRegions, SelectedRegions1, 'area', 'and', 33977.1, 95493.6)

11. reduce_domain (GrayImage, SelectedRegions1, ImageReduced)

12. *最小外接圆

13. smallest_circle (ImageReduced, Row1, Column1, Radius1)

14. gen_circle (Circle1, Row1, Column1, Radius1-5)

15. gen_circle (Circle2, Row1, Column1, Radius1-25)

16. reduce_domain (ImageReduced, Circle1, ImageReduced1)

17. reduce_domain (ImageReduced, Circle2, ImageReduced2)

18. difference (ImageReduced1,ImageReduced2, RegionDifference1)

19. reduce_domain (ImageReduced, RegionDifference1, ImageReduced3)

20. threshold (ImageReduced3, Regions1, 6, 15)

21. select_shape (Regions1, SelectedRegions1, 'area', 'and', 17.1327, 999.0)

22. connection (SelectedRegions1, ConnectedRegions1)

23.

24. area_center (ConnectedRegions1, Area, Row, Column)

25. dev_set_draw ('margin')

26. dev_set_color ('red')

27. dev_set_line_width (3)

28. gen_rectangle2_contour_xld (Rectangle1, Row, Column, 0, 40, 40)

29. dev_display(Image1)

30. dev_display(SelectedRegions1)

31. dev_display(Rectangle1)

32.

33. count_obj (SelectedRegions1, N)

34. set_display_font (WindowHandle1, 20, 'mono', 'true', 'false')

35. if(N==0)

36.      disp_message (WindowHandle1, 'OK', 'window', Row1, Column1, 'green', 'false')

37. else

38.          disp_message (WindowHandle1, 'NG', 'window', Row1+30, Column1+30, 'red','false')

39.

40. endif

41. disp_continue_message (WindowHandle1, 'black', 'true')

42. endfor

43. dev_clear_window()


复制代码

jiansuper 发表于 2024-11-18 21:45
感谢回复，我学习下

学习了，谢谢dgggg
