区域封闭填充

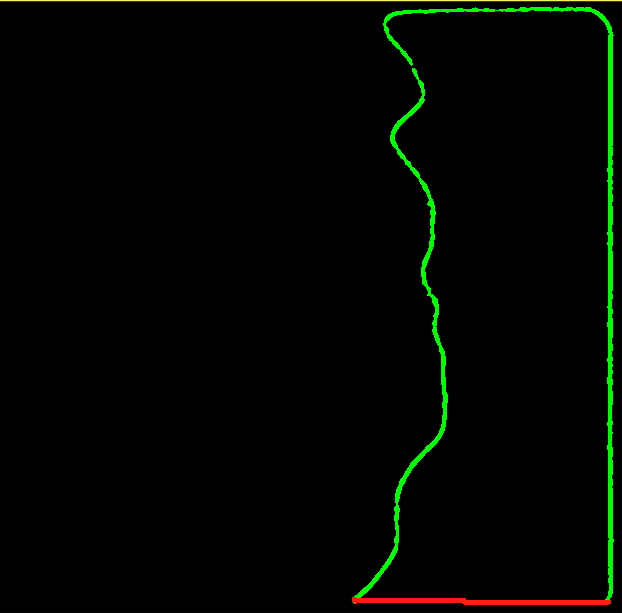

大佬们，绿色区域应该用什么封闭（红色线条）填充

1. shape_trans (ROI_0, RegionTrans, 'convex')

复制代码

风景你好 发表于 2025-1-15 18:45

这样的话左边的曲线特征丢失了，整体区域变成梯形了，还有其他办法吗

红色线条是我自己手画的，想问一下哪个算子能进行这样的操作

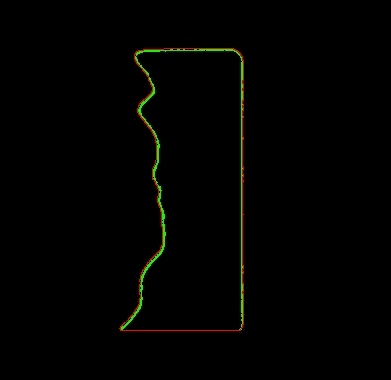

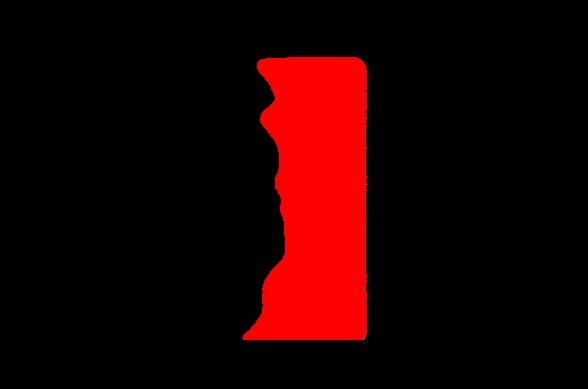

看能不能满足你的需求

区域封闭.hdev (566 Bytes, 下载次数: 4, 售价: 3 视觉币)

2025-1-16 09:24 上传

点击文件名下载附件

1. private void action()

2. {

3.

4.

5.      // Local iconic variables

6.

7.      HObject ho_Image, ho_Image1, ho_Image2, ho_Image3;

8.      HObject ho_Region, ho_RegionClosing, ho_Skeleton, ho_Contours;

9.

10.      // Local control variables

11.

12.      HTuple hv_Rows = new HTuple(), hv_Columns = new HTuple();

13.      HTuple hv_Width = new HTuple(), hv_Height = new HTuple();

14.      HTuple hv_WindowHandle = new HTuple();

15.      // Initialize local and output iconic variables

16.      HOperatorSet.GenEmptyObj(out ho_Image);

17.      HOperatorSet.GenEmptyObj(out ho_Image1);

18.      HOperatorSet.GenEmptyObj(out ho_Image2);

19.      HOperatorSet.GenEmptyObj(out ho_Image3);

20.      HOperatorSet.GenEmptyObj(out ho_Region);

21.      HOperatorSet.GenEmptyObj(out ho_RegionClosing);

22.      HOperatorSet.GenEmptyObj(out ho_Skeleton);

23.      HOperatorSet.GenEmptyObj(out ho_Contours);

24.      ho_Image.Dispose();

25.      HOperatorSet.ReadImage(out ho_Image, "C:/Users/admin/Desktop/q/检测.tif");

26.      ho_Image1.Dispose(); ho_Image2.Dispose(); ho_Image3.Dispose();

27.      HOperatorSet.Decompose3(ho_Image, out ho_Image1, out ho_Image2, out ho_Image3

28.          );

29.      if (HDevWindowStack.IsOpen())

30.      {

31.          HOperatorSet.DispObj(ho_Image2, HDevWindowStack.GetActive());

32.      }

33.      ho_Region.Dispose();

34.      HOperatorSet.Threshold(ho_Image2, out ho_Region, 128, 255);

35.      ho_RegionClosing.Dispose();

36.      HOperatorSet.ClosingCircle(ho_Region, out ho_RegionClosing, 17);

37.

38.      ho_Skeleton.Dispose();

39.      HOperatorSet.Skeleton(ho_RegionClosing, out ho_Skeleton);

40.

41.      ho_Contours.Dispose();

42.      HOperatorSet.GenContourRegionXld(ho_Skeleton, out ho_Contours, "center");

43.      hv_Rows.Dispose(); hv_Columns.Dispose();

44.      HOperatorSet.GetContourXld(ho_Contours, out hv_Rows, out hv_Columns);

45.      List<(double,double)> points = new List<(double,double)>();

46.      for (int i = 0; i < hv_Rows.Length; i++)

47.      {

48.          points.Add((hv_Columns.DArr[i], hv_Rows.DArr[i]));

49.      }

50.      var listWithoutDuplicates = points.Distinct().ToList();

51.      listWithoutDuplicates.Sort((a, b) => b.Item2.CompareTo(a.Item2));

52.      double max2row = 0;

53.      int index = 0;

54.      for (int i = 0; i < listWithoutDuplicates.Count; i++)

55.      {

56.          var d = listWithoutDuplicates[i].Item2;

57.          var count = listWithoutDuplicates.FindAll(x => x.Item2 == d).Count();

58.          if (count > 1)

59.          {

60.              if (max2row < d)

61.              {

62.                  max2row = d;

63.                  index = i;

64.              }

65.          }

66.      }

67.      HObject line;

68.      HOperatorSet.GenEmptyObj(out line);

69.      line.Dispose();

70.      var list1 = listWithoutDuplicates.FindAll(x => x.Item2 == listWithoutDuplicates[index].Item2);

71.      list1.Add(listWithoutDuplicates[0]);

72.      var row = list1.Select(x => x.Item2).ToArray();

73.      var col = list1.Select(x => x.Item1).ToArray();

74.      HOperatorSet.GenRegionPolygon(out line, new HTuple(row), new HTuple(col));

75.      hv_Width.Dispose(); hv_Height.Dispose();

76.      HOperatorSet.GetImageSize(ho_Image2, out hv_Width, out hv_Height);

77.      HOperatorSet.SetWindowAttr("background_color", "black");

78.      HOperatorSet.OpenWindow(0, 0, hv_Width / 4, hv_Height / 4, 0, "visible", "", out hv_WindowHandle);

79.      HDevWindowStack.Push(hv_WindowHandle);

80.      if (HDevWindowStack.IsOpen())

81.      {

82.          HOperatorSet.DispObj(ho_Image2, HDevWindowStack.GetActive());

83.          HOperatorSet.DispObj(line, HDevWindowStack.GetActive());

84.      }

85.

86.

87.

88.

89.

90.

91.      line.Dispose();

92.      ho_Image.Dispose();

93.      ho_Image1.Dispose();

94.      ho_Image2.Dispose();

95.      ho_Image3.Dispose();

96.      ho_Region.Dispose();

97.      ho_RegionClosing.Dispose();

98.      ho_Skeleton.Dispose();

99.      ho_Contours.Dispose();

100.

101.      hv_Rows.Dispose();

102.      hv_Columns.Dispose();

103.      hv_Width.Dispose();

104.      hv_Height.Dispose();

105.      hv_WindowHandle.Dispose();

106.

107. }

复制代码

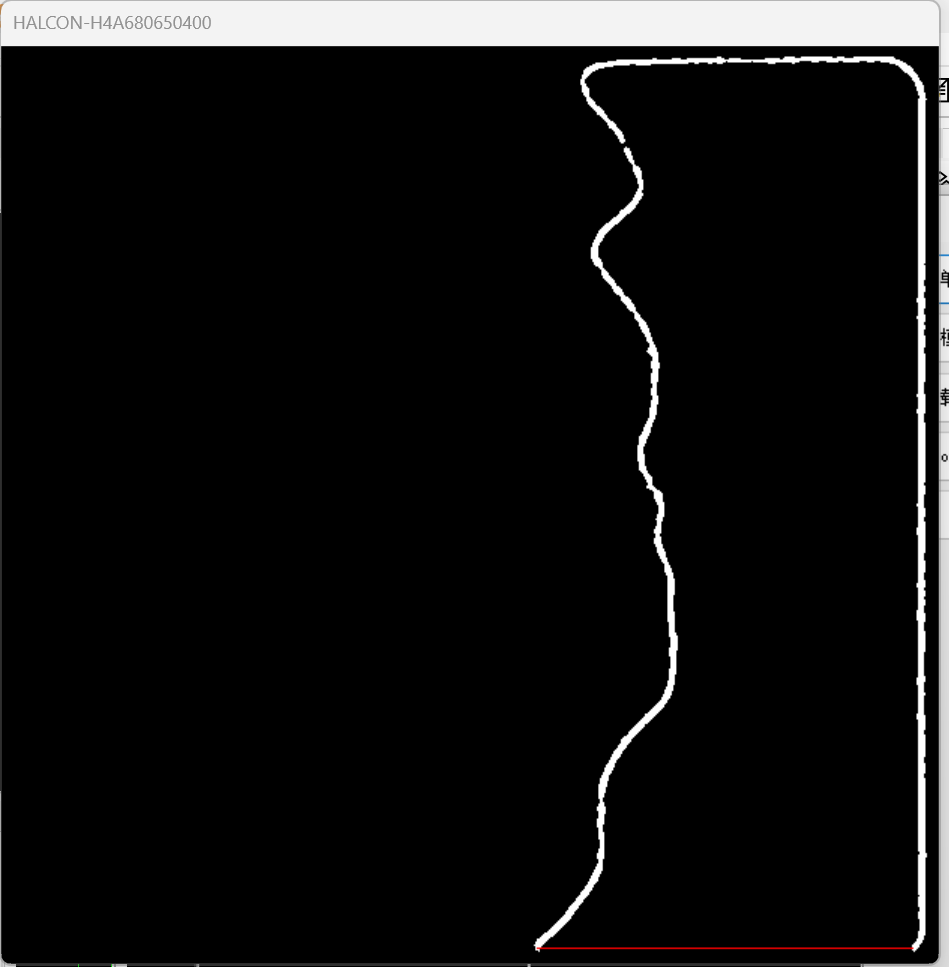

补一个图，zsbd

gungun 发表于 2025-1-16 09:25
看能不能满足你的需求

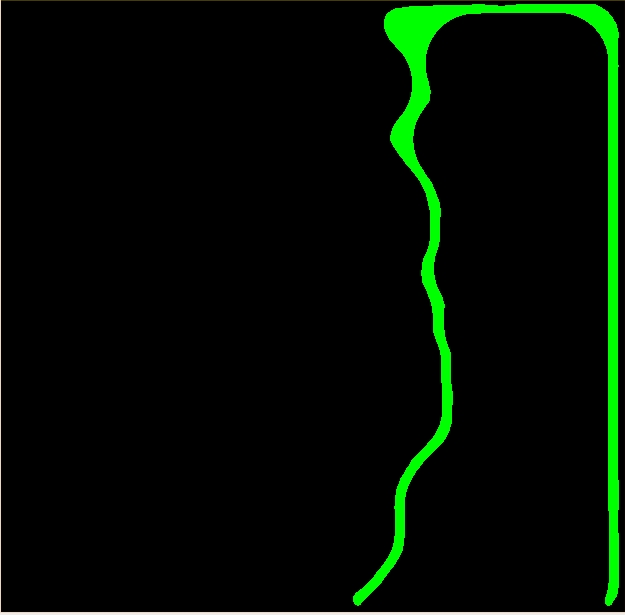

大佬，为什么我做的是这样的

jjx1983 发表于 2025-1-16 11:50

谢谢大佬，已经解决了，C#还没怎么学，不太会，哈哈哈

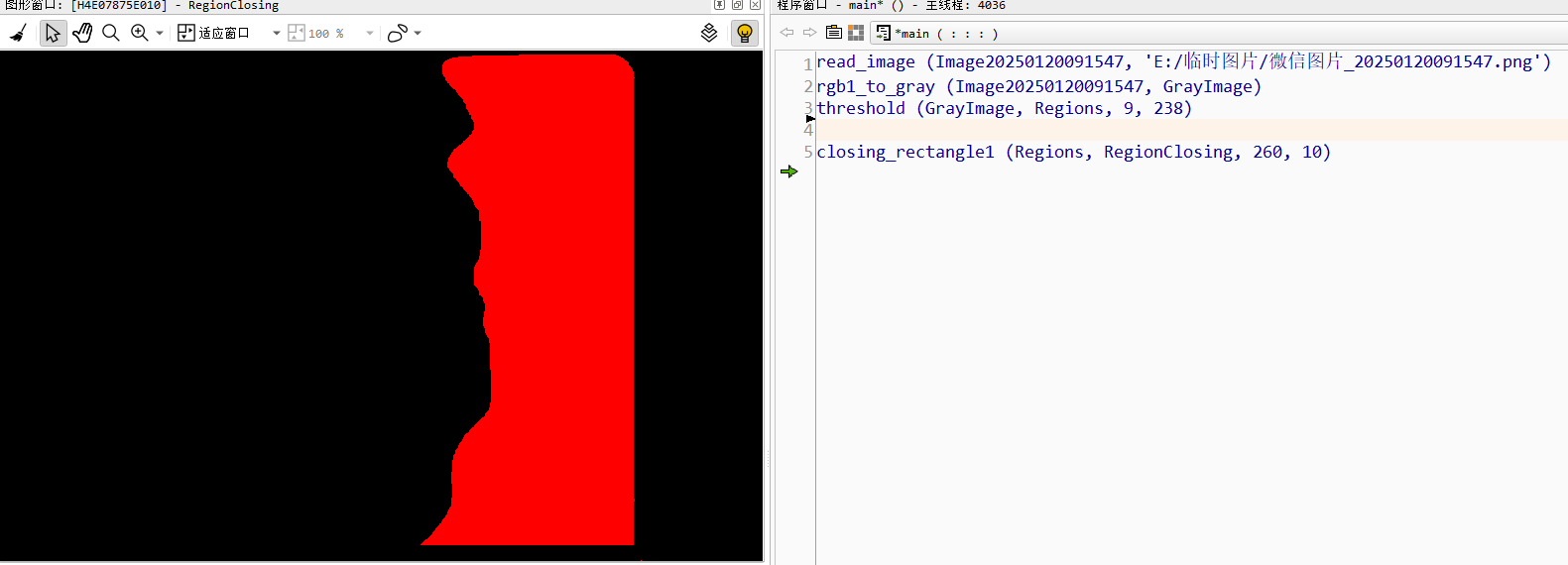

看一下最下面缺口多大，然后使用闭运算矩形结构元素就可以了
closing_rectangle1 (Regions, RegionClosing, 260, 10)
