划痕检测，求帮我

帮我解决这个划痕检测的案例，谢谢，划痕最后需要标记出来

其他图像下载：
链接：https://pan.baidu.com/s/1qYzEmew 密码：c49r

1. list_files ('C:/Users/Admin/Desktop/51halcon', ['files','follow_links','recursive'], ImageFiles)

2. tuple_regexp_select (ImageFiles, ['\\.(bmp),'ignore_case'], ImageFiles)

3. for Index := 1 to |ImageFiles| by 1

4.     read_image (Image, ImageFiles[Index-1])

5.

6.     threshold (Image, Region, 150, 255)

7.     closing_circle (Region, RegionClosing, 3.5)

8.     reduce_domain (Image, RegionClosing, ImageReduced)

9.     median_image (ImageReduced, ImageMedian, 'circle', 3.5, 'mirrored')

10.     dyn_threshold (ImageReduced, ImageMedian, RegionDynThresh, 24, 'dark')

11.     dilation_rectangle1(RegionDynThresh, RegionDilation, 3, 2)

12.     connection (RegionDilation, ConnectedRegions)

13.     select_shape (ConnectedRegions, SelectedRegions, 'max_diameter', 'and', 40, 200)

14.     dev_display (Image)

15.     dev_display (SelectedRegions)

16.     stop()

17.     dump_window (3600, 'jpeg', 'C:/Users/Admin/Desktop/51halcon/'+Index+'_1.jpg')

18.

19. endfor


复制代码

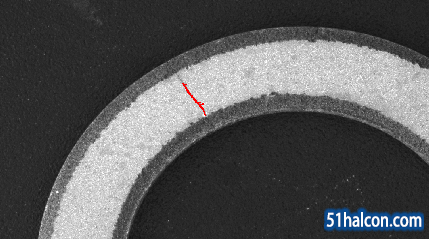

初步效果如下：

1. * Image Acquisition 01: Code generated by Image Acquisition 01

2. list_files ('C:/Users/zazaniao/Desktop/51halcon划痕图像', ['files','follow_links'], ImageFiles)

3. tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)

4. ,'ignore_case'], ImageFiles)

5. for Index := 0 to |ImageFiles| - 1 by 1

6.     read_image (Image, ImageFiles[Index])

7.     * Image Acquisition 01: Do something

8.     *分割，得到圆环区域，用作检测ROI

9.     threshold (Image, Regions, 145, 255)

10.

11.     connection (Regions, ConnectedRegions)

12.     select_shape_std (ConnectedRegions, SelectedRegions, 'max_area', 70)

13.     closing_circle (SelectedRegions, RegionClosing, 3.5)

14.     fill_up_shape (RegionClosing, ROI, 'area', 1, 100)

15.

16.     *裂缝分割

17.     median_image (Image, ImageMedian, 'circle', 5, 'mirrored')

18.     dyn_threshold (Image, ImageMedian, RegionDynThresh, 14, 'dark')

19.

20.     connection (RegionDynThresh, ConnectedRegions1)

21.     intersection (ConnectedRegions1, ROI, RegionIntersection)

22.

23.     connection (RegionIntersection, ConnectedRegions2)

24.

25.     select_shape (ConnectedRegions2, SelectedRegions1, 'area', 'and', 20, 99999)

26.     union1 (SelectedRegions1, RegionUnion)

27.     connection (RegionUnion, ConnectedRegions3)

28.

29.     dev_display (Image)

30.     select_shape (ConnectedRegions3, SelectedRegions2, 'rect2_len1', 'and', 15, 99999)

31.

32.     *对区域进行特征筛选：裂缝的方向一般指向或者背离圆心

33.     count_obj (SelectedRegions2, Number)

34.     gen_empty_obj (Obj)

35.     area_center (ROI, Area, Row, Column)

36.     AngleOffset:=rad(30)

37.     for i:=1 to Number by 1

38.         select_obj (SelectedRegions2, ObjectSelected, i)

39.         smallest_rectangle2 (ObjectSelected, Row2, Column2, Phi, Length1, Length2)

40.         area_center (ObjectSelected, Area1, Row1, Column1)

41.         angle_lx (Row, Column, Row1, Column1, Angle1)

42.         angle_lx (Row1, Column1, Row, Column, Angle2)

43.         if(abs(Phi-Angle1)<AngleOffset or abs(Phi-Angle2)<AngleOffset)

44.             concat_obj (Obj, ObjectSelected, Obj)

45.         endif

46.     endfor

47.

48.     *对裂缝合并

49.     union1 (Obj, RegionUnion1)

50.     closing_circle (RegionUnion1, RegionClosing2, 273.5)

51.     dev_display (Image)

52.     dev_display (RegionClosing2)

53.     stop ()

54. endfor

复制代码

看的我目瞪口呆，佩服佩服大佬
